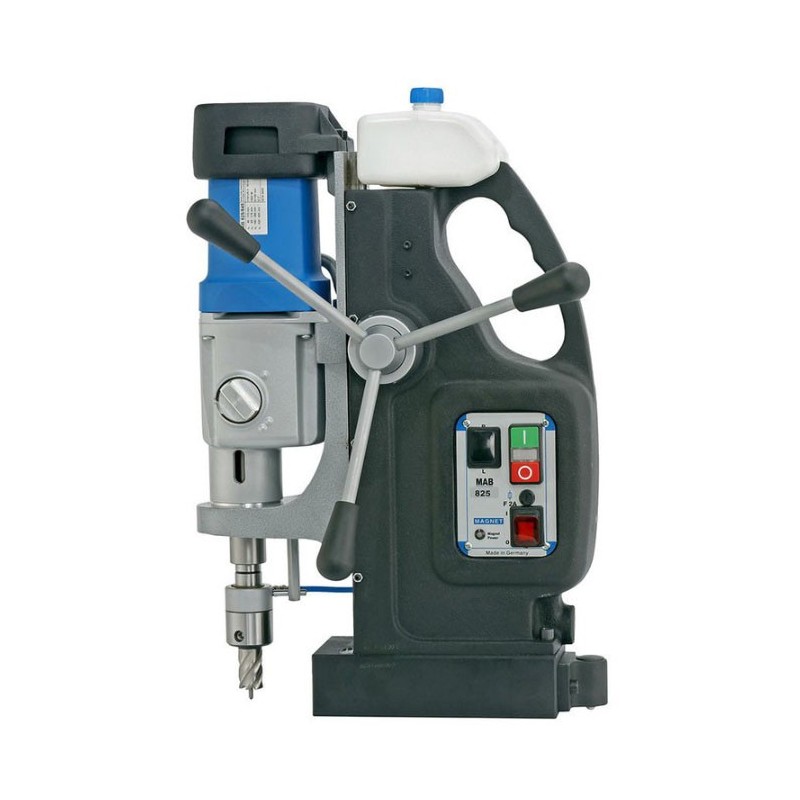

BDS MAB 825 V magnetic drill

Delivery time within 8-10 weeks
BDS MAB 825 V magnetic drill
search
  • BDS MAB 825 V magnetic drill
  • BDS MAB 825 V magnetic drill
  • BDS MAB 825 V magnetic drill
  • BDS MAB 825 V magnetic drill
MAB825V


Always affordable prices



Fast delivery



Reliable warranty

BDS
€7,399.00 vat 25.5 %
5 895,62 €
tax excl.
Quantity
Delivery time within 8-10 weeks

Description

MAB 825 V - With adjustable automatic feed. The automatic feed is switched on and off, on a turnstile and can be activated in any position. The infinite variable feed rate ensures optimal use of each tool. When the upper or lower end position is reached, the feed is automatically interrupted. Further processing is possible at any time by manual shifting. Safety regulation: If the magnet loses its adhesion capability, the drilling and feed motor is automatically extinguished. With the same performance data, the machine can also be used with manual feed.


Included:

• Fastening strap

• Guide pin for hole saw ZAK 075 +090 + 100 + 120

• Wedge

• Weldon keyless drill chuck 19,05 mm

• Weldon keyless drill chuck 32 mm

Data sheet

Voltage (V)
230
Rated Power (W)
1800
Rotating speed (rpm)
40-110 /65-175 /140-360 /220-600 (4 speed)
Core drill size Ø (mm)
12-60 mm Auto12-100 mm Manual
Drilling capacity (mm)
26 mm auto 31.75 manual
Thread cutting (mm)
M30
Spindle
MT3/MK3
Spindle travel (mm)
255
Chuck-system
MT 3, Weldon 32 mm (1 1/4')
Countersinking (mm)
40
CW / CCW rotation
✓
Swivel base
optional
Torque Control
✓
Magnet indicator
✓
Permanent internal lubrication
✓
Friction clutch
✓
Overheating protection
✓
Magnet Size (mm)
110 x 220 x 54
Weight (kg)
34
Warranty
1 year
