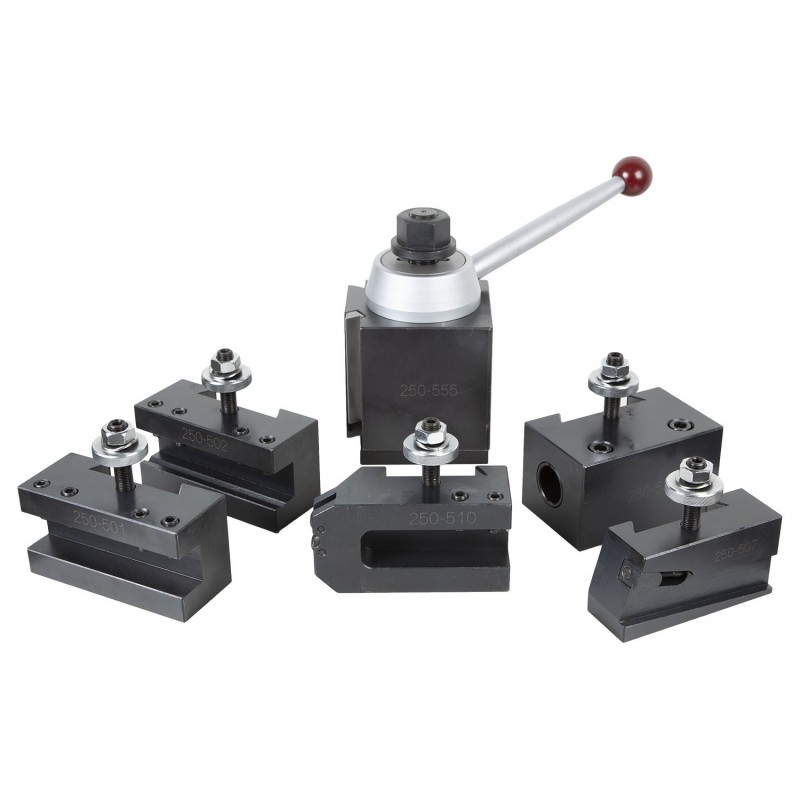

Quick Change Tool Post 32 mm / 5 Holders: 250-500

Last item in stock

Tool Holder quick change system for lathe, with a rotational diameter of 432-1219 mm

  • -20%
Quick Change Tool Post 32 mm / 5 Holders: 250-500
250-555PIVA
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
Norm. 2,629.00 €
You save 20% 525.80 €
2,103.20 € vat 25.5 %
1 675,86 €
tax excl.
notifications_active Subscribe price drop
Quantity
Last item in stock

Description

Pikavaihtojärjestelmä. 32mm/5 pidikettä 250-500

Terien pikavaihtojärjestelmä sorviin,
joiden pyörimishalkaisija 432-1219mm

Sisältää:

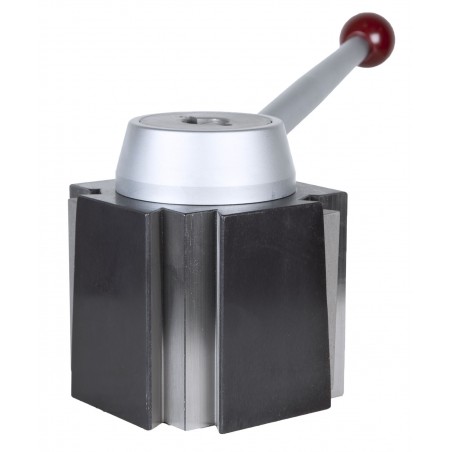

Pitimen 250-500

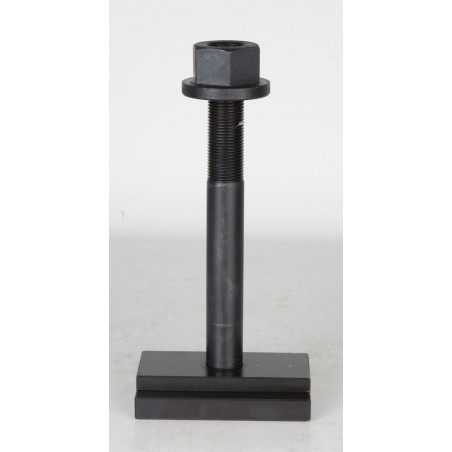

Pidinistukka

Nimike

Mitta A

MM

Mitta B

MM

Mitta C

MM

Mitta D

MM

Pyörimishalk.

MM

Paino

kg
250-100 64 94 57 14 300 2,2
250-200 76 110 70 16 250-380 3,2
250-300 85 125 76 20 330-457 5,7
250-400 102 152 92 22 355-508 10
250-500 127 195 118,5 26 432-1219 19

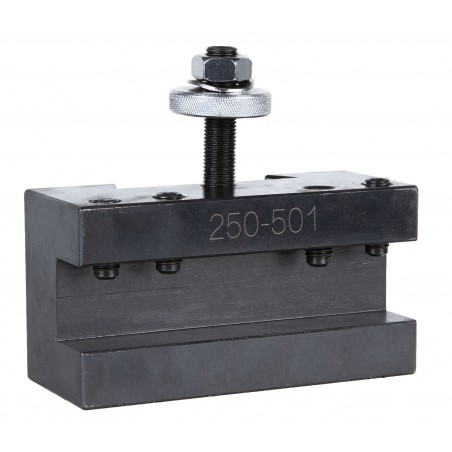

Vaihtokasetti 250-501 Sorvausterän pidin



  A B C D
250-101 25 mm 14 mm 12 mm 38 mm
250-102 25 mm 14 mm 12 mm 38 mm
250-201HC 29 mm 22 mm 12 mm 44 mm
250-202HC 29 mm 22 mm 12 mm 44 mm
250-301 38 mm 19 mm 16 mm 54 mm
250-302 38 mm 19 mm 16 mm 54 mm
250-401 44 mm 26 mm 19 mm 64 mm
250-402 44 mm 26 mm 19 mm 64 mm
250-501 57 mm 32 mm 26 mm 80 mm

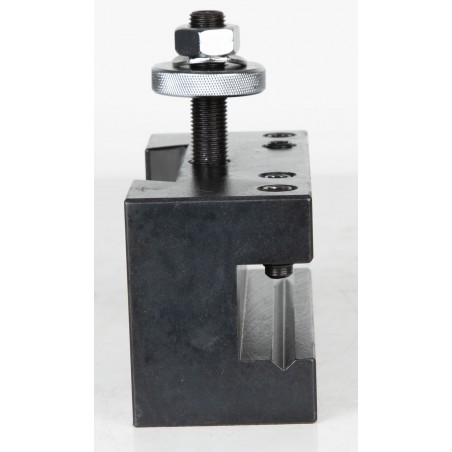

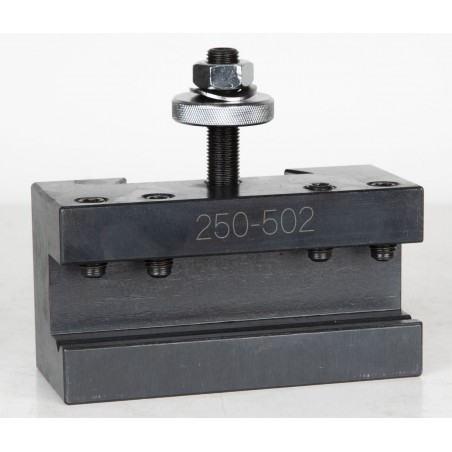

Vaihtokasetti 250-502 Sorvausterän pidin  (V-ura, pyöreille terille)

                                          A                     B                        C                   D

250-101 26mm 14mm 12mm 38mm
250-102 26mm 14mm 12mm 38mm
250-201HC 35mm 22mm 20mm 50mm
250-202HC 35mm 22mm 20mm 50mm
250-301 38mm 19mm 16mm 54mm
250-302 38mm 19mm 16mm 54mm
250-401 44mm 26mm 19mm 64mm
250-402 44mm 26mm 19mm 64mm
250-501 57mm 32mm 26mm 80mm
250-502                           57mm             32mm              26mm              80mm

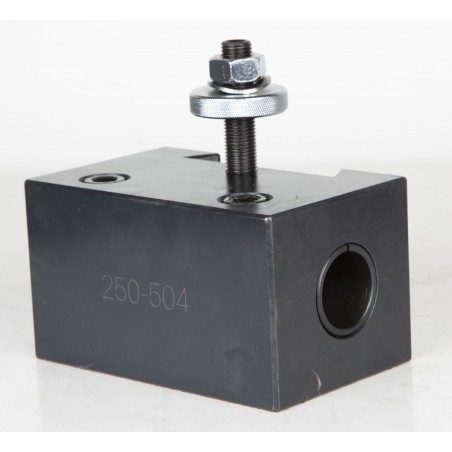

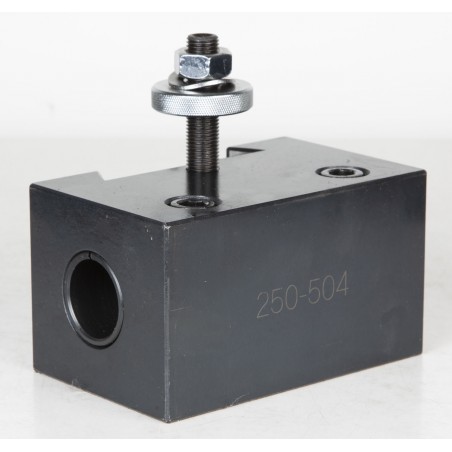

Vaihtokasetti 250-504 Pidin pyöreälle

A B
250-153 19mm 37,5mm MK3                             1kg
250-205 22mm 44,5mm MK2 1,2kg
250-354 27mm 54mm MK4 2,4kg
250-454 32mm 63,5mm MK4 3,3kg
250-504 40mm 88mm

Pyöreä                        1-1/2" (38,1mm)         1-1/4" (31,75mm)

 6,1kg

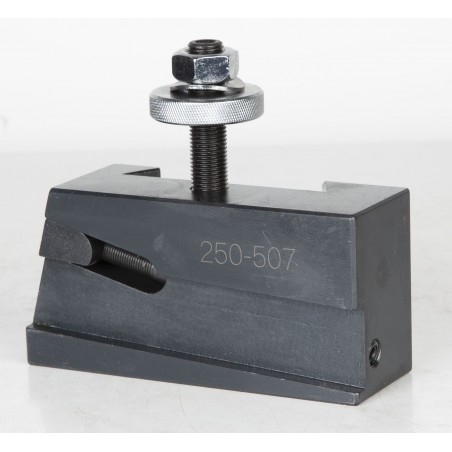

Vaihtokasetti 250-507 Katkaisuterän pidin

,

A (mm) B (mm) Max terä koko C (mm)
250-107 5 14 38
250-207 5 17,5 44,5
250-307 5 19 50,5
250-407 6,5 24 63,5
250-507 6,5 30 70

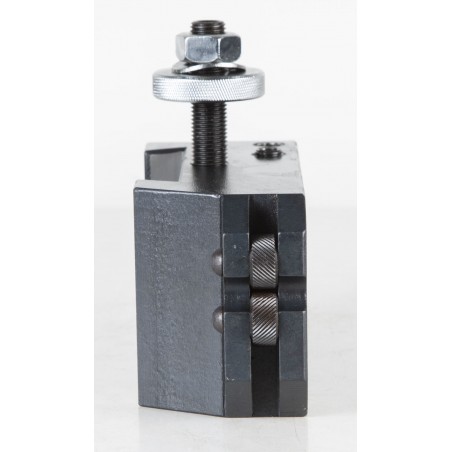

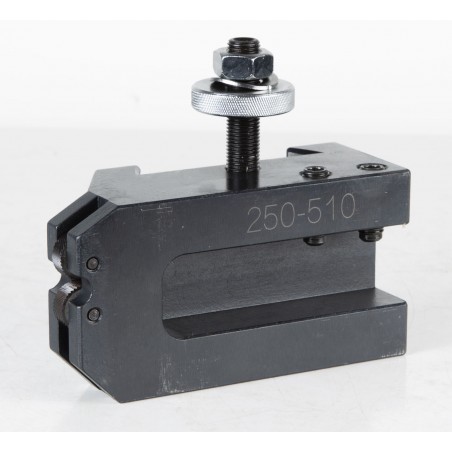

250-510 pyällystyökalu / teräpidin

A B C D Paino
250-110 22mm 64mm 40mm 14mm 0,48
250-210 25mm 66mm 44,5mm 16mm 0,85
250-310 30mm 79mm 51mm 20mm 1,15
250-410 36,5mm 95mm 63mm 26mm 1,95
250-510 49 114 80 33 3,6



Data sheet

Weight (kg)
38
