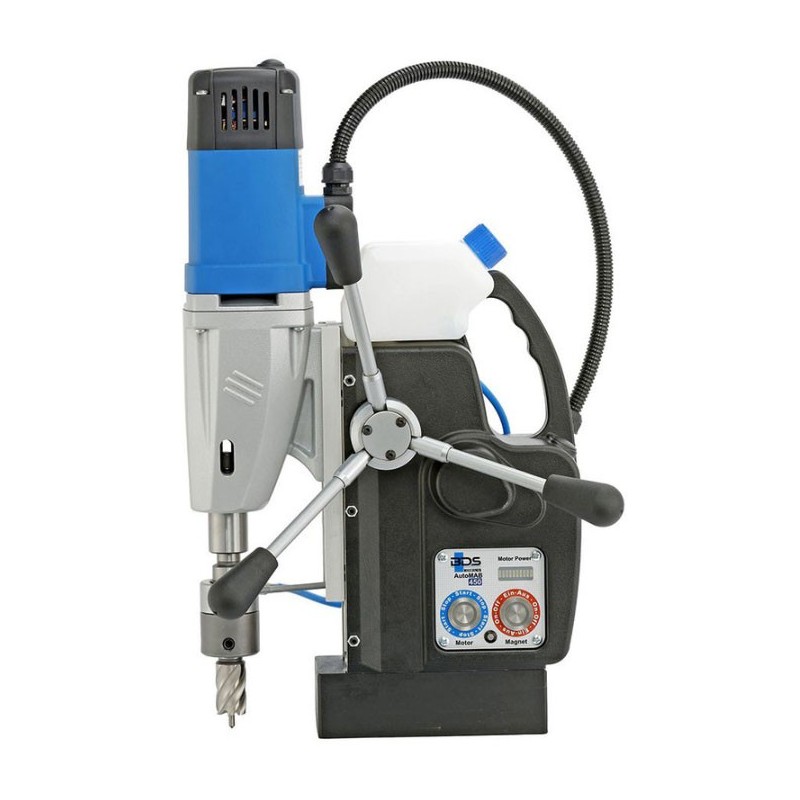

BDS AutoMAB 450 magnetic drill

The BDS AutoMAB 450 is a new magnetic drill model from Germany equipped with an automatic feed.

Pricing and availability on request
Request a quote

BDS
MAB450A

Description

AutoMAB 450 – Affordable fully automatic drilling solution with MT2 taper

Fully automatic magnetic drill made in Germany – with automatic feed, automatic return, and automatic shut-off.
AutoMAB 450 is equipped with a Morse taper 2 spindle and drills holes up to Ø 45 mm with a cutting depth up to 55 mm.

A simple and easy-to-use solution

AutoMAB 450 is user-friendly and simple in design. No gearbox adjustment is required, making drilling fast and efficient. Fully automatic feed and return enable consistent results, as the drilling pressure is adjusted automatically. This makes the machine ideal for new users as well as for production use where repeatability and speed are important.

Longer tool life

Automatic feed extends the service life of annular cutters in particular, improves the drilling finish, and increases productivity. If desired, the machine can also be used in manual mode with the supplied feed handle.

Technical features

  • Fully automatic feed and return

  • Morse taper MT2

  • Drilling capacity up to Ø 45 mm

  • Cutting depth up to 55 mm

  • 1150 W motor – powerful and reliable

  • Manual operation possible with the supplied feed handle

  • German quality – made in Germany

  • An excellent choice for future automated production processes

Included:

Carrying case

Safety chain

Weldon chuck 19.05 mm

Drift MK2

Annular cutter pilot pin ZAK 075 + 100

Data sheet

Voltage (V)
230
Rated Power (W)
1150
Rotating speed (rpm)
250 /450 (2 speed)
Core drill size Ø (mm)
12-45
Spindle
MT2 / MK2
Spindle travel (mm)
160
Chuck-system
MT 2, Weldon 19 mm (3/4")
Permanent internal lubrication
✓
Weight (kg)
16
Warranty
1 year
