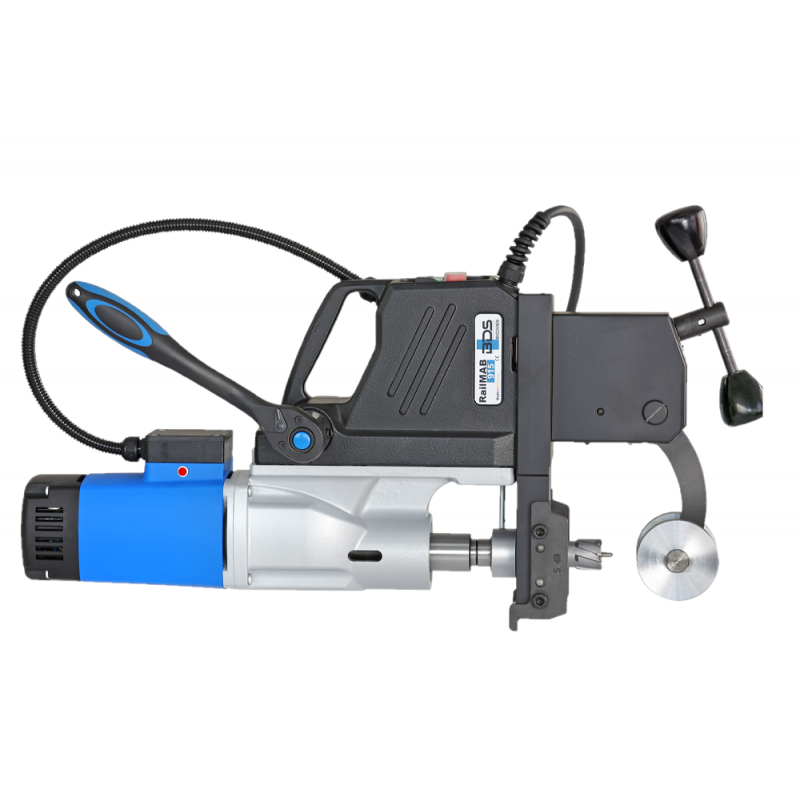

BDS RailMAB 915 magnetic drill

BDS RailMAB 915 magnetic drill
  • BDS RailMAB 915 magnetic drill
  • BDS RailMAB 915 magnetic drill
MAB915
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

BDS
2,790.00 € vat 24 %
2 250,00 €
tax excl.
Quantity
Delivery time within 4 weeks

Description

In railway track manufacturing, BDS offers two new and completely redesigned "railway drilling machines". The RailMAB 915 magnetic drilling machine (electric) manufactured in Germany with 1600 Watt engine and 2-stage oil bath gearbox and RailMAB 965 (fuel motor) magnetic drilling machine with fuel motor. RailMAB 915 and RailMAB 965 are special drilling machines used in the construction of railway tracks, such as drilling of grounding screws, contact systems and insulated joints. The RailMAB 965 is a drilling machine equipped with a robust petrol engine. Its performance reaches 1.5 kW at a torque of 3.04 Nm. Both drillmachines can easily be attached to the railways with a fast clamping system. To ensure the necessary stability in drilling, this carries a pressure of 1.2 tonnes on the railway track. The multitude of optionally available "rail adapters" increases the flexibility and user-friendliness of the two different drillmachines. These adapters automatically determine the height and distance of the core drilling or the hole to be made on the rail. The drills are complete with a BDS special "railway track-annular cutter" belonging to the CarbideRAIL series cutters, which has a cutting depth of 30 mm and a diameter of 16 mm to 36 mm.

Included:

• Carrying Case

• A 5l coolant tank with hand pump

• Weldon keyless drill chuck 19.05 mm

• Wedge MT3

• Optional size of "railroad-adapter"

• Socket wrench





Data sheet

Voltage (V)
230
Rated Power (W)
1600
Rotating speed (rpm)
70-280 /100-420 (2 speed)
Core drill size Ø (mm)
17-36
Spindle
MT3/MK3
Spindle travel (mm)
160
Chuck-system
weldon 19
CW / CCW rotation
Torque Control
Magnet indicator
Permanent internal lubrication
Overheating protection
Weight (kg)
17
Show all
