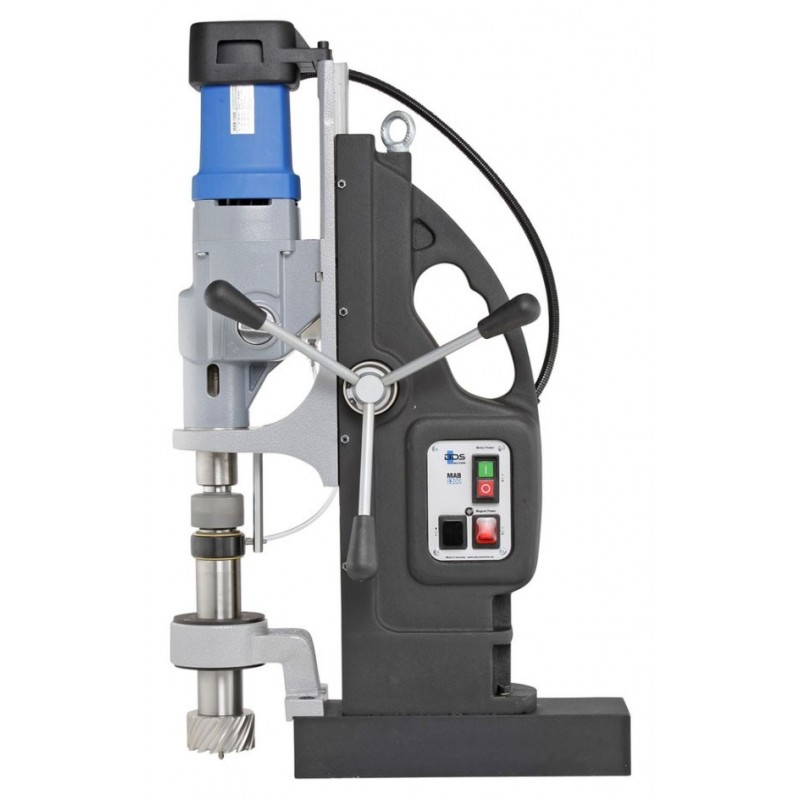

BDS MAB 1300 magnetic drill

MAB 1300 is the most powerful magnetic drill on the market, made in Germany for the most demanding industrial applications. Ø 130 mm annular cutting, tapping up to M42, and state-of-the-art safety technology make it an unbeatable choice for machine shops and shipbuilding.

The world’s most powerful magnetic drilling and tapping machine, made in Germany – MAB 1300

This magnetic drill meets all the requirements of the heavy machine shop industry, shipbuilding, and production engineering.

■ Annular cutting up to Ø 130 mm (30 mm cutting depth)
■ Suitable for the entire BDS annular cutter range: thread drilling, reaming, countersinking, and tapping up to M42
■ Standard equipment: straight arbor with 32 mm Weldon shank (1 1/4”) and MT4 Morse taper

The support bracket in the standard design can be removed in a few seconds, increasing the machine’s stroke to an impressive 310 millimetres.

MAB 1300 is equipped with comprehensive safety technology, such as:
✓ Overheating protection
✓ Tool damage protection system
✓ Carbon brush wear indicator
✓ Warning for insufficient magnetic clamping force

Standard delivery includes a wheeled transport case made of impact-resistant plastic, making the 51 kg machine easy to move.

Despite its high power, the MAB 1300 operates on single-phase power, helping to reduce energy consumption.

Included:

Transport case

Safety chain

Drift key MK4

Weldon adapter 32 -> 19

Annular cutter pilot pin ZAK 075 + 090

Annular cutter pilot pin ZAK 100 + 120
