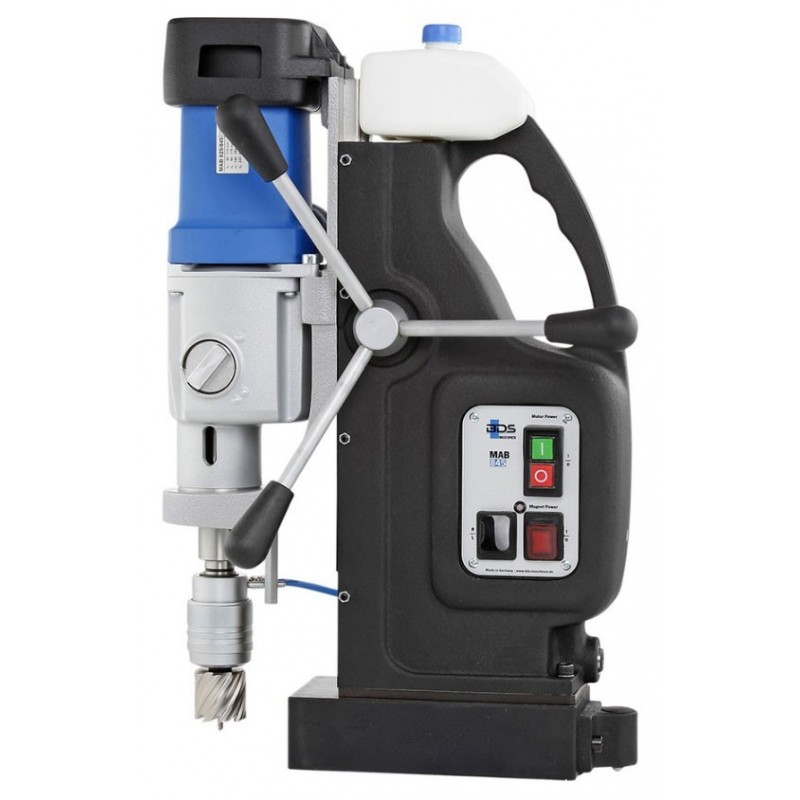

BDS MAB 825 magnetic drill

The MAB 825 is a powerful magnetic drill made in Germany for professionals. Ø 100 mm drilling, tapping up to M30, automatic lubrication, and top-class safety features ensure reliable work in demanding production environments. The same machine as the MAB 845, but without a swivel base.

MAB 825 – Powerful and reliable magnetic drill for professionals

The MAB 825 is a high-quality magnetic drill made in Germany, designed for continuous use in demanding production applications.
It is the same machine as the MAB 845, but without the swivel base.

Key features:

• Powerful and reliable 16 A double-insulated motor
• 4-speed oil-bath gearbox – for high-power, demanding applications
• Suitable for continuous production use
• Stepless torque adjustment and full-wave control electronics
• Precise control of drilling, tapping, reaming, and countersinking
• Integrated cutting fluid tank and automatic internal lubrication

Drilling and tapping capacity:

• Function    Capacity
• Annular drilling    Up to Ø 100 mm (4")
• Tapping    Up to M30 / 1-1/8"
• Twist drilling    Up to Ø 32 mm (1-1/4")
• Reaming and countersinking    Yes
• Operation    Manual or automatic (MAB 825 V)

    Equipment and usability:

•     Quick-change clamping system for ¾" Weldon shank (keyless)
•     Adapter also for 1-1/4" Weldon shank
•     Optional IBC 21 keyed chuck
•     Ergonomic control panel, designed for one-handed operation
•     Internal cabling – protects and reduces clutter
•     Emergency stop button – for immediate safety

     Safety first:

•     Green/red LED magnetic force indicator – ensures safe operation
•     Overheat protection – protects the motor from overload
•     Built-in cable protection
•     The machine switches off automatically if the magnet loses its hold

Included:

Carrying case

Safety chain

MK3 drift

Weldon quick-change chuck 19.05 mm

Weldon chuck 32 mm

Annular cutter pilot pin ZAK 075 + 090

Annular cutter pilot pin ZAK 100 + 120
