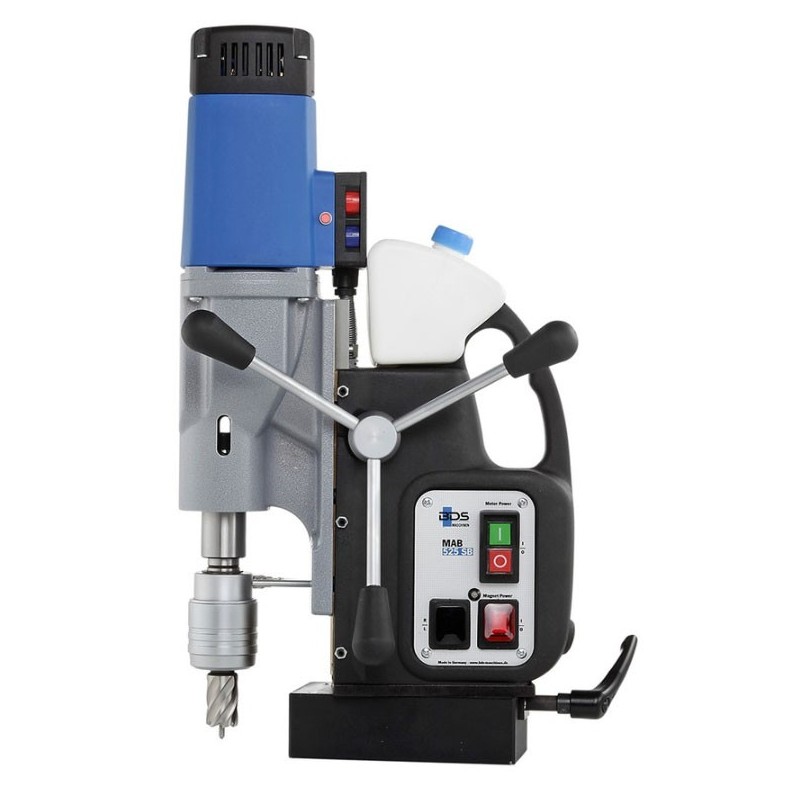

BDS MAB 525 SB magnetic drill

The MAB 525 SB is a lightweight yet powerful magnetic drill for workshops and assembly work. The swivel base, Ø 63.5 mm drilling capacity, M24 tapping, and automatic lubrication make operation precise and smooth.

MAB 525 SB (Swivel Base) – Magnetic drill for precise and efficient work

MAB 525 SB is a versatile and durable magnetic drill, especially useful for assembly work and in the workshop. The swivel base makes it easy to align the machine accurately, even when the magnet is activated.

Machine features

• Powerful and reliable 14.5 A double-insulated motor

• Height: 480 mm (19")

• Weight: only 16 kg (35 lbs), easy to move

• Two-speed oil-bath gearbox – ideal for annular cutting and twist drilling

• Suitable for continuous operation

• Intelligent electronic torque control

Drilling and tapping capacity

• Annular cutting up to Ø 63.5 mm (2-1/2")

• Twist drilling up to Ø 25 mm (1")

• Tapping up to M24 / 15/16"

• Uses annular cutters (core drills)

• Also suitable for twist drills

Lubrication and reliability

• Integrated cutting fluid reservoir

• Automatic internal lubrication system

• Designed for professional production use and long-lasting operation

Included:

Carrying case

Safety chain

Drift key MK3

13 mm drill chuck

Arbor MK3/B16

Weldon quick-change chuck 19.05 mm

Weldon tap adapters M10, M12, M16

Annular cutter pilot pin ZAK 075 + 100
