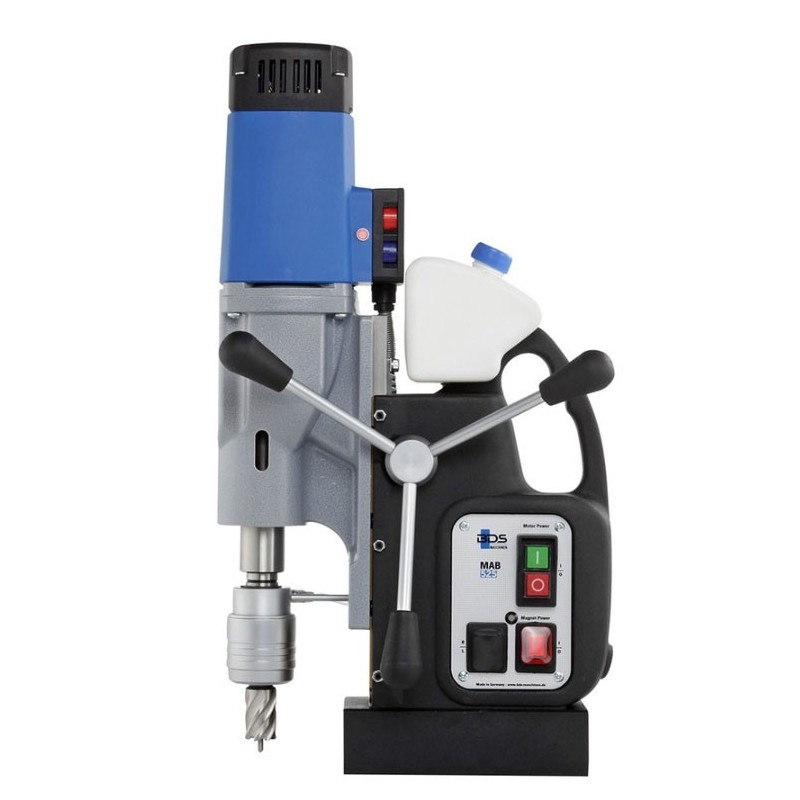

BDS MAB 525 magnetic drill

The MAB 525 is a lightweight and durable German magnetic drill for maintenance and installation work. Ø 50 mm drilling, M20 tapping, and a reliable two-speed oil-bath gearbox make work easy and efficient.

MAB 525 – Powerful and compact magnetic drill

Made in Germany, the MAB 525 is a durable and lightweight magnetic drill, especially suited for service and installation work – weighing only 16 kg. The two-speed oil-bath gearbox, MT3 Morse taper, and a drilling capacity of up to Ø 50 mm make it a reliable partner for both on-site and workshop use.

The torsion-resistant design is ensured by a one-piece gearbox housing and slide rail. Suitable for tapping up to M20.

Technical features

• Powerful 14.5 A double-insulated motor

• MT3 taper, drilling capacity up to Ø 50 mm

• Tapping capacity up to M20


• Annular cutter drilling up to Ø 63 mm

• Two-speed oil-bath gearbox – long service life

• Designed for continuous operation

• Intelligent electronic torque control

• Overheat protection – extends the service life of the machine and cutters

• Reversing motor – also suitable for tapping

• Quick-change tool holder – keyless drill bit change (3/4" Weldon)

• Standard oil reservoir and automatic internal lubrication

• LED magnet indicator (green/red) for safe operation

• Internal cabling – protects cables and improves ergonomics

• Emergency stop button

• Ergonomic one-hand control panel

Included:

Carrying case

Safety chain

Drift key MK2

13 mm drill chuck

Arbor MK2/B16

Weldon quick-change chuck 19.05 mm

Weldon tap adapters M10, M12, M16

Annular cutter pilot pin ZAK 075 + 100
