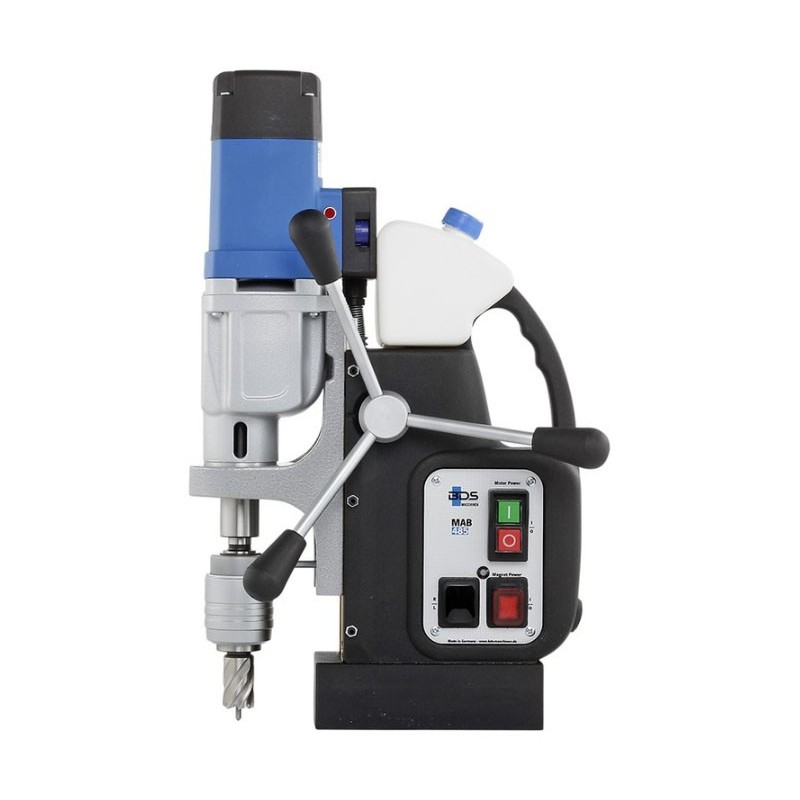

BDS MAB 485 SB magnetic drill

MAB 485 SB – ProfiPLUS-class magnetic drill with swivel base

Made in Germany, the MAB 485 SB is an excellent introduction to the ProfiPLUS series. It is equipped with a swivel base that makes work easier, especially when drilling overhead or horizontally. A practical solution for demanding working conditions.

MAB 485 SB – ProfiPLUS-class magnetic drill with swivel base

Made in Germany, the MAB 485 SB is an excellent first step into the ProfiPLUS range. It is equipped with a swivel base that makes work easier, especially when drilling overhead or horizontally. A practical solution for demanding working conditions.

BDS now offers four magnetic drill models with a swivel base, making it easier to align the machine precisely even when the magnet is activated. The swivel base (SB) makes accurate positioning significantly easier—without the user having to support the full weight of the machine.

How the swivel base works:
Roughly position the machine where you want it, activate the magnet, release the alignment lock, and adjust the machine precisely into the correct position effortlessly. This reduces physical strain on the user and improves work safety—even when the machine is secured with a chain.

Features of the MAB 485 SB magnetic drill

• Continuous electronic monitoring of motor power and speed

• Suitable for: annular cutting, twist drilling, countersinking, reaming, and tapping

• Two-speed gearbox – wear-resistant oil-bath gearbox

• Swivel Base – enables precise and easy machine alignment

• Improves ease of use and safety, especially in challenging drilling orientations

Included:

Carrying case

Safety chain

Drift key MK2

13 mm drill chuck

Drill chuck arbor MK2/B16

Weldon quick-change chuck 19.05 mm

Weldon tap adapters M10, M12, M16

Annular cutter pilot pin ZAK 075 + 100
