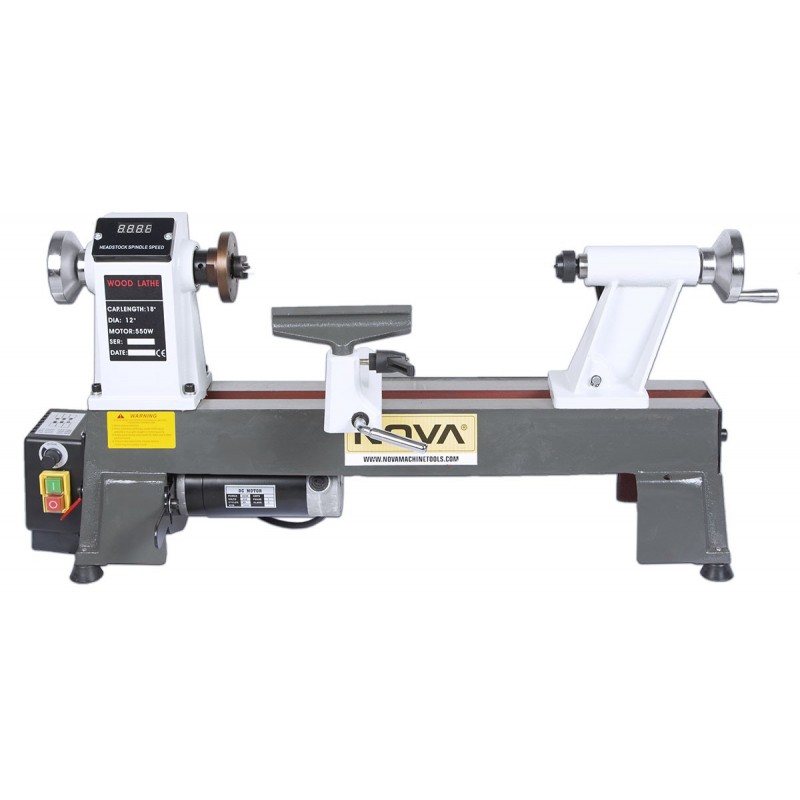

NOVA MC450VD mini lathe
NOVA MC450VD mini lathe. The large distance between centers allows up to 300 mm long parts to be machined.
Description
NOVA MC450VD mini lathe. The large distance between centers allows up to 300 mm long parts to be machined. The distance between centers is 450 mm and can be extended with 990 mm extra foundation.The lathe is compact and easy to move. Robust cast iron frame, motor output 550 W (230 V). It has three speed ranges that are continuously adjustable at 650-1430, 1240-2790 and 1600-3800 rpm.
Included: Fixed tailstock spindle, flat mounting plate 80 mm, and a rotating tailstock spindle (MT2).
VIDEO
Data sheet
Voltage (V)
230
Rated Power (W)
550
Rotating speed (rpm)
650-3800
Spindle
M33 x 3,5
Distance between centers (mm)
450
Swing over bed (mm)
300
Width (mm)
210
Length (mm)
830-950
Height (mm)
410
Weight (kg)
35
Warranty
1 year
