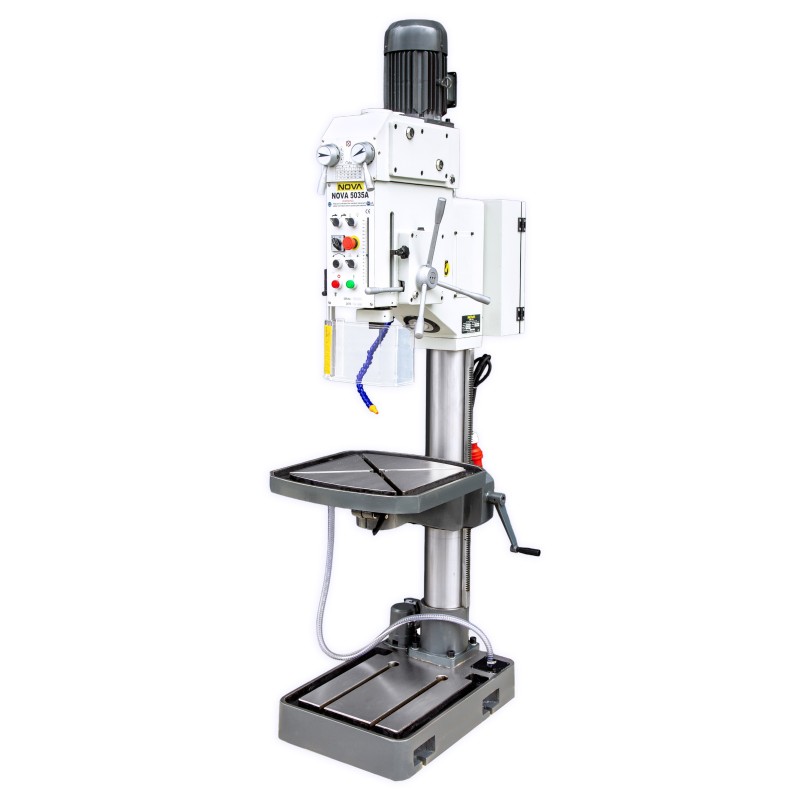

NOVA 5035A Drill Press

NOVA 5035A is a powerful industrial drill press for demanding work. It features a two-speed motor, automatic feed, a large table, and a wide spindle speed adjustment range. It is ideal for professionals.

The NOVA 5035A is a robust, high-performance industrial drill press, ideally suited for demanding drilling work. This drill press is equipped with advanced features such as a two-speed motor and a tapping function (with automatic reverse), making it an excellent choice for industrial professionals looking for a reliable and efficient tool. The machine’s 35 mm (steel), 40mm (cast iron) capacity and 1500 W motor provide sufficient power even for large drilling tasks.

Operation is smooth thanks to the large 560 x 560 mm table, which features practical T-slots for securely mounting a machine vise or a cross-feed table. With 180 mm spindle travel, the machine offers versatility for different applications. The machine weighs 540 kg, ensuring stability and reliability, and preventing vibration during use. The spindle speed is adjustable between 50–1450 rpm and includes 18 speeds, enabling precise and efficient material processing.

Key features of the NOVA 5035A include an automatic feed with feed rates of 0.1 and 0.2 mm/rev. This function improves drilling accuracy and reduces the need for manual feeding, while also providing protection against excessive load via a torque limiter. The quick-release function enables fast tool changes and further improves usability.

Standard equipment includes:

• Drill chuck 3–16 mm and drill spindle MK4-B16
• 2 adapter sleeves: MK4 > MK3 and MK4 > MK2
• Wedge
• Oil can

The NOVA 5035A drill press combines power, versatility, and reliable performance, making it an excellent choice for a professional workshop.
