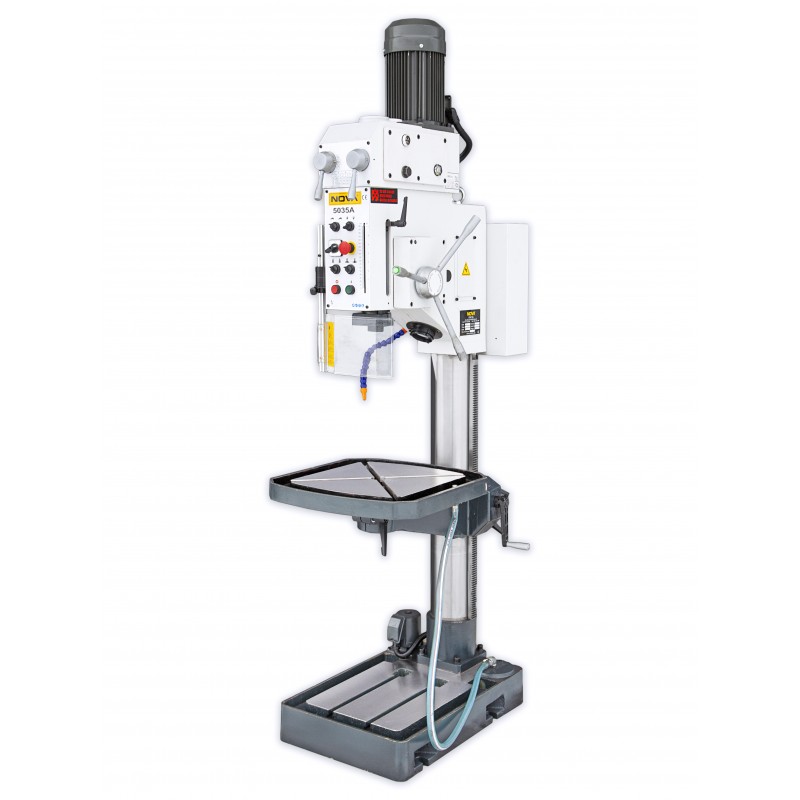

NOVA 5035A Drill Press

Out of stock (ask delivery time)

The NOVA 5035A is equipped with automatic feeding, double speed motor and automatic reverse for tapping.

  • On sale!
  • -20%
  • Out of stock (ask delivery time)
NOVA 5035A Drill Press
search
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
  • NOVA 5035A Drill Press
PORA5035A


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €6,099.00
Save 20% -€1,219.80
€4,879.20 vat 25.5 %
3 887,81 €
tax excl.
Quantity
Out of stock (ask delivery time)

Description

The NOVA 5035A is equipped with automatic feeding, double speed motor and automatic reverse for tapping.

Large table and heavy construction 460 kg and 2250 mm high NOVA 5035A has a 1500 W motor, 35 mm drilling capacity and the spindle stroke of 180 mm. Torque limiter for automatic feeding when overloading machine.



Included:

•Drill chuck 3-16 mm

•Spindle MT4-B16

•2 pcs. adapter sleeves MT4> MT3, MT4> MT2

Data sheet

Voltage (V)
380
Rated Power (W)
1500
Drilling capacity (mm)
35
Tapping capacity cast iron (mm)
M27
Tapping capacity steel (mm)
M24
Spindle
MT4
Table T -slots (mm)
30 / 17
Spindle max distance to table (mm)
780
Distance spindle to column (mm)
350
Distance spindle to stand (mm)
1320
Spindle travel (mm)
180
Diameter of column (mm)
120
160
Main table size (mm)
560 x 560
Rotating speed (rpm)
100 - 1450 / 18 speed
Auto feed (mm/r)
0.1 / 0.2
Width (mm)
570
Length (mm)
950
Height (mm)
2250
Weight (kg)
460
Warranty
1 year
Show all
