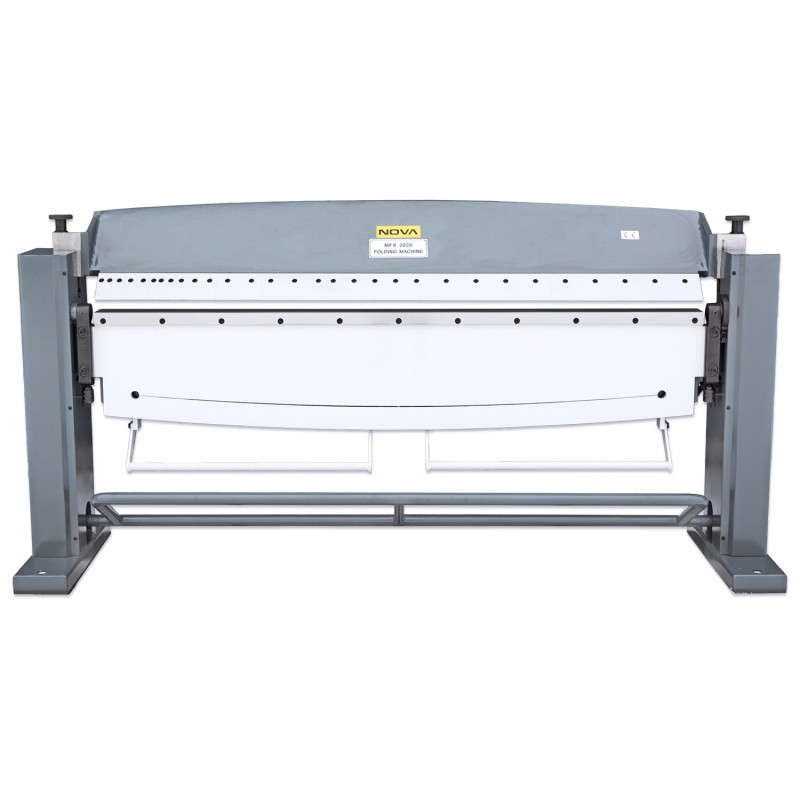

NOVA 2020 Pan & Box Brake

The NOVA 2020 box and pan brake bends sheet metal up to 1.5 mm thick over a width of 2020 mm. The machine features a sturdy frame, foot-operated clamping, and automatic release. An efficient choice for demanding professional use.

The NOVA 2020 box and pan brake is a top-tier solution when you need power and precision for metal bending. This high-quality brake is designed specifically for demanding industrial and professional use. A working width of 2020 mm and a sheet thickness capacity of 1.5 mm ensure that even large projects can be completed efficiently.

The large bending capacity (0–135°) makes a wide range of sheet-metal bending tasks easy and effortless. The finger set size (finger dimensions from 500 mm down to 25 mm) provides flexibility for both large and small jobs. The sturdy 860 kg frame keeps the machine firmly in place, and user comfort hasn’t been overlooked: foot locking and automatic release make operation safe and fast.

Main features:

• Bending angle: 0–135°
• Maximum sheet thickness: 1.5 mm
• Working width: 2020 mm
• Finger dimensions (mm): 500, 500, 250, 220, 150, 100, 75, 50, 45, 40, 35, 30, 25
• Weight: 860 kg
• Foot locking and automatic release

Choose the NOVA 2020 box and pan brake when you need a durable and versatile machine for demanding applications. Contact us to ensure you select only the best for your next project.
