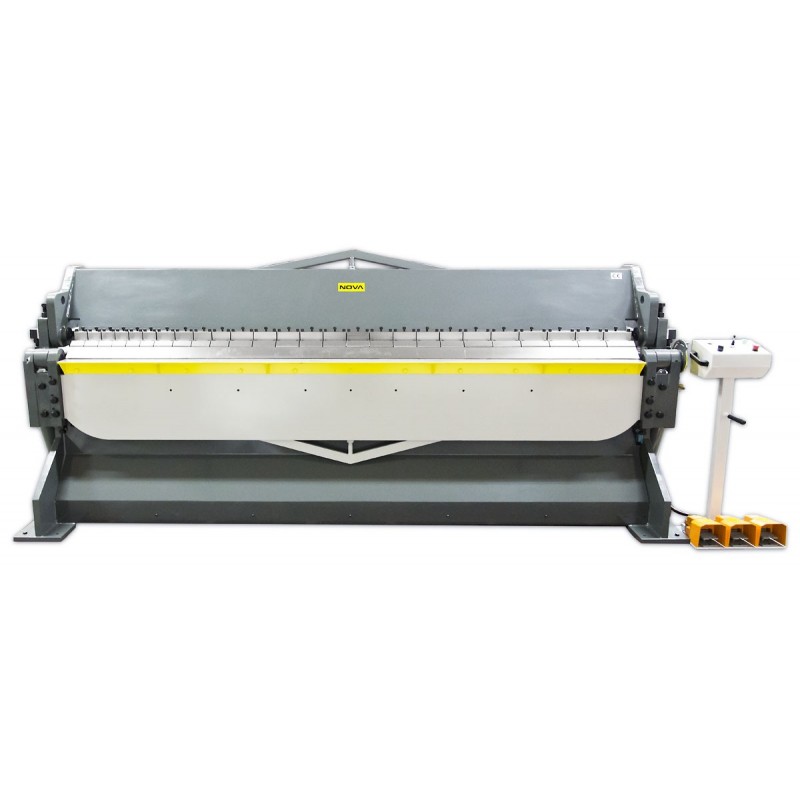

NOVA 3050H Pan & Box Hydraulic Brake (3050 x 3,5 mm)

The SUPER-HEAVY-DUTY NOVA 3050H HYDRAULIC BOX AND PAN BRAKE enables bends up to 3020 mm wide and 3.5 mm thick.

NOVA 3050HX3.5 is a powerful hydraulic box and pan brake designed for professional use, providing precise and consistent bending for large sheet panels. The machine’s hydraulic drive ensures smooth operation and high clamping force, and its steel plate construction makes it durable and reliable in demanding production environments.

Technical specifications

• Max. material thickness: 3.5 mm

• Max. working width: 3050 mm

• Bending angle: 0–135°

• Max. box depth: 150 mm

• Jaw opening: 75 mm

• Throat depth (reach): 660 mm

• Hydraulic cylinder stroke length: 400 mm

• Hydraulic pressure: 15 MPa

• Motor: 7.5 kW

• Weight: 3400 kg

Features

• Adjustable automatic stop based on the bending angle.

• Robust steel construction that withstands long-term loading.

• Suitable for bending sheet metal in, for example, metal workshops, electrical switchgear manufacturing, and the automotive industry.

• Option to use both automatic and inching modes (Inch / Auto).

• Easy to transport and install.

NOVA 3050HX3.5 is an ideal choice when a high-capacity and precise hydraulic box and pan brake is needed for versatile industrial use.

Currently a made-to-order product. Contact us and request a quote!

Also available in the following widths:

1220 mm

1830 mm

2440 mm

All with a capacity of 3.5 mm.
