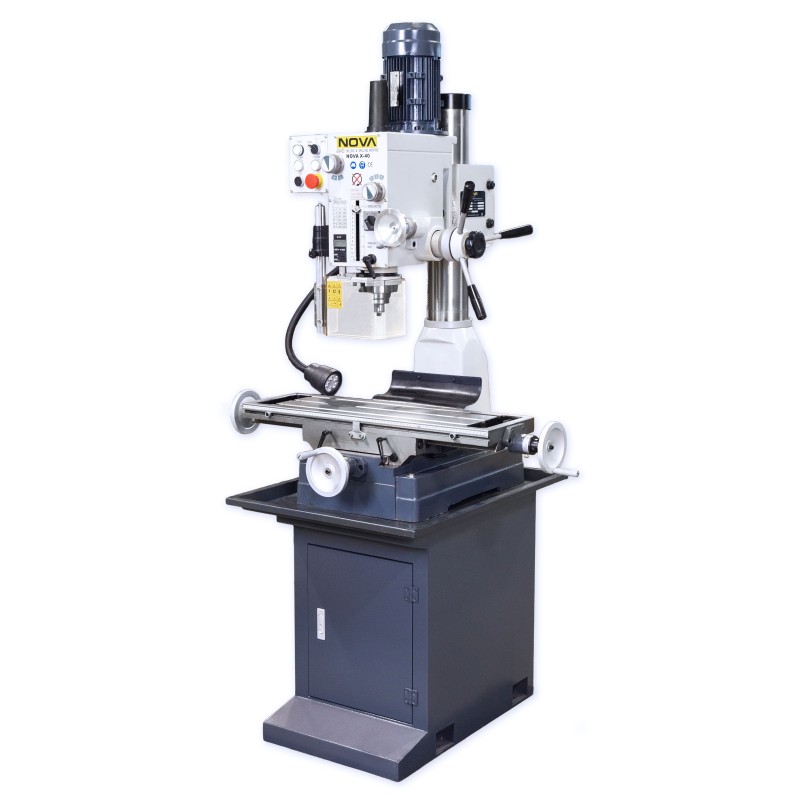

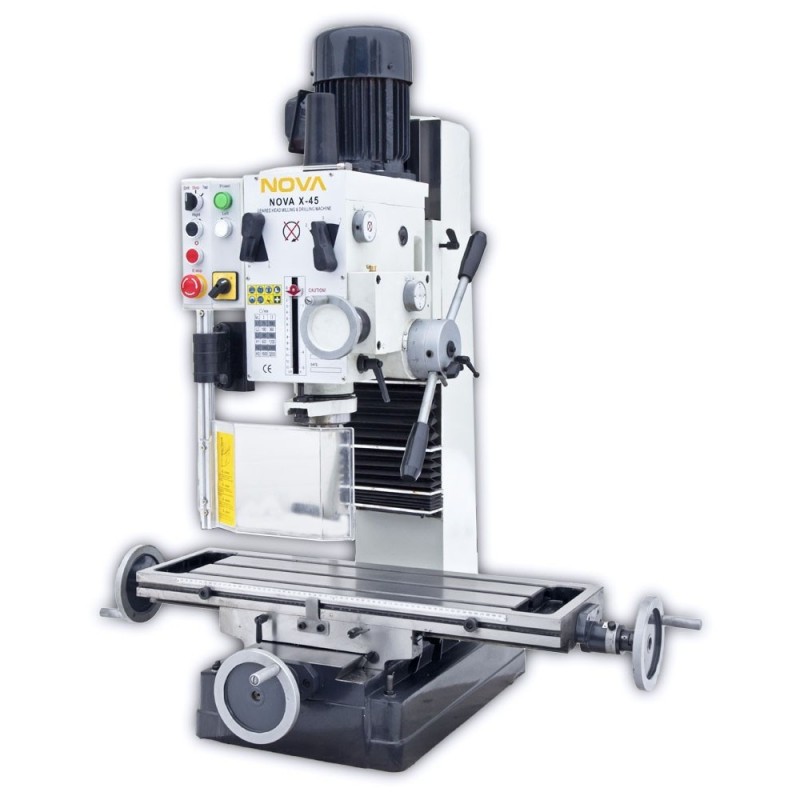

NOVA X-45L milling machine

In stock

The NOVA X-45 L milling machine is a professional-grade tool for demanding users. It offers excellent value for money and versatile performance. The motor power is 1500/1100 W, it has six speed ranges (75–3200 rpm), and a large worktable. The package includes a drill chuck and mounting hardware.

  • -15%
NOVA X-45L milling machine
search
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
  • NOVA X-45L milling machine
JYRX45L


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €4,299.00
Save 15% -€644.85
€3,654.15 vat 25.5 %
2 911,67 €
tax excl.
Get price drop alerts
Quantity
In stock

Description

NOVA X-45 L – A Professional Precision Tool for Milling, Drilling, and Tapping

The NOVA X-45 L is designed for users who demand power, precision, and reliability from their machine. This milling machine combines professional-level performance, versatile features, and excellent value for money in a compact package.

The powerful 1500/1100 W motor provides enough torque for even the most demanding machining operations, and the six-step speed range (75–3200 rpm) enables precise adjustment for different materials and machining methods.

The NOVA X-45 L’s automatic tapping function makes cutting threads fast and hassle-free. When the spindle is lowered to the set start height, the tap starts rotating automatically, reverses direction at the specified depth, and stops when the spindle returns to the upper position.

Main features

  • Drilling capacity: 45 mm in cast iron / 32 mm in steel
  • Tilt-adjustable milling head: swivels 90° in both directions
  • Maximum spindle travel:  120 mm
  • Milling capacity: 80 mm vertical / 32 mm horizontal
  • Six-step speed range (75–3200 rpm)
  • Tapping function
  • Worktable: large and rigid 1000 × 240 mm table provides ample space and stability
  • Maximum table longitudinal travel: 760 mm and cross travel 190 mm

Overall, the NOVA X-45 L is a versatile and powerful milling machine, perfectly suited for repair shops, machine shops, and demanding hobby environments. It offers exactly what a professional values – power, precision, and ease of use in one package.

Included: drill chuck, face mill holder MK4, adapter sleeves MK4->MK3 and MK3->MK2, T-slot clamping bolts, wedge key, and oil can.

Cabinet stand and chip pan are optional accessories.

Data sheet

Voltage (V)
380
Rated Power (W)
1100/1500
Motor (rpm)
1400/2800
Rotating speed (rpm)
75-3200 (12 speed)
Drilling capacity (mm)
45 / 32
Milling capacity (mm)
80 / 32
Head tilt (°)
90
Spindle
MT4
Table T -slots (mm)
14 / 22
Spindle max distance to table (mm)
460
Spindle travel (mm)
120
Main table size (mm)
1000 x 240
Table movement (mm)
190 x 760
Weight (kg)
350
Warranty
1 year
