NOVA HV-8 Rotary Table

Last item in stock
Stock replenishment, ETA 10.04.

Horizontal and vertical fastening. Manufactured from cast-iron. Table has a diameter of 200mm, and it rotates 360 °.

JAKOHV8
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
549.00 € vat 24 %
442,74 €
tax excl.
Quantity
Last item in stock
Stock replenishment, ETA 10.04.

Description

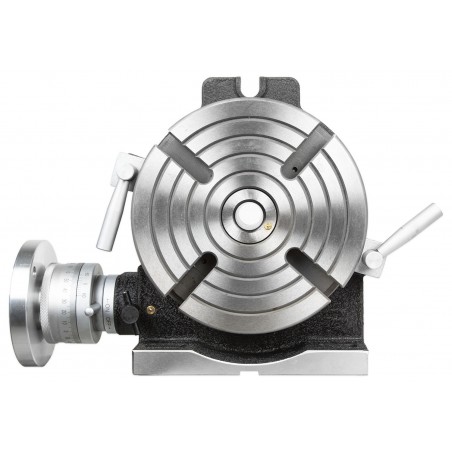

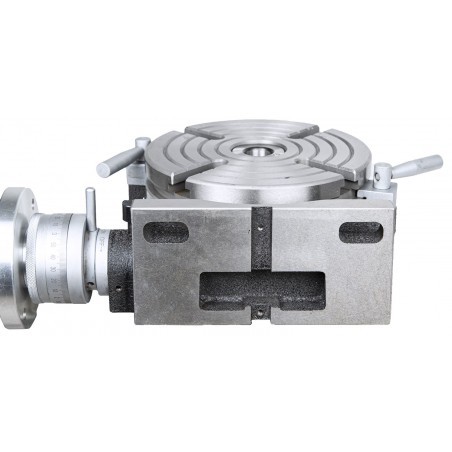

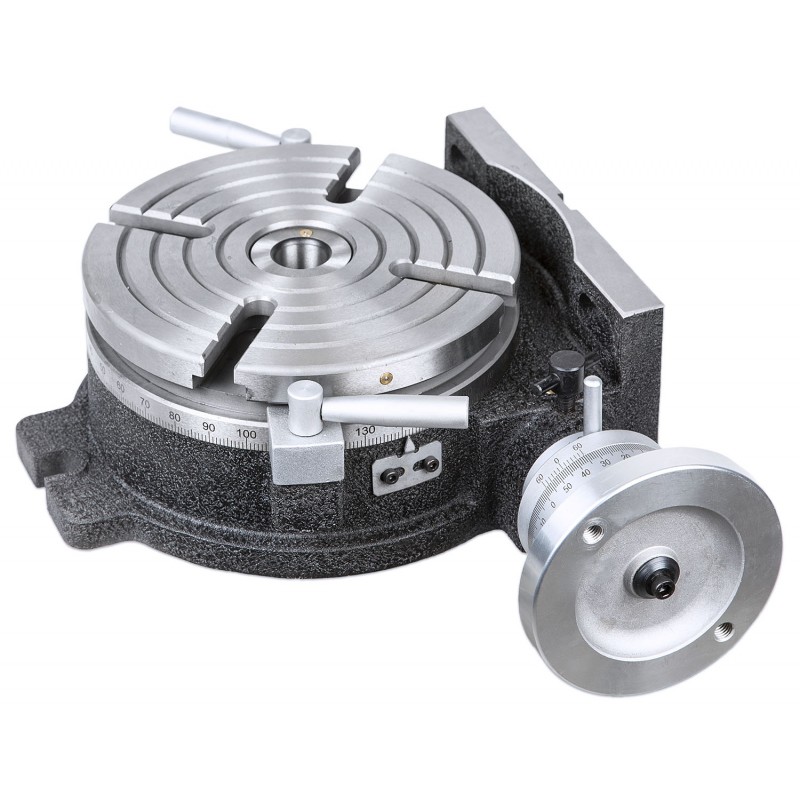

Horizontal and vertical fastening. Manufactured from cast-iron. Table has a diameter of 200mm, and it rotates 360 °. Rotation accuracy 0.015 mm. Takes load up to 80kg depending on the type. Transmission ratio 90:1, one hand wheel turn gives 4° on the table. Lying-down height of 105 mm. Cone MT3. Weight 26 kg. Available accessories are dividing plate and tip rest, and then rotary table can be used as dividing machine.

Data sheet

Weight (kg)
26
Warranty
1 year
