NOVA 290VF + 25VL metal lathe/milling machine

In stock

TOP-QUALITY NOVA 290VF + 25VL COMBINATION MACHINE for turning, drilling, milling, and grinding!
The new model features a 700 mm distance between centers and automatic longitudinal and cross-feed.

  • -15%
NOVA 290GV + 25VL metal lathe/milling machine
search
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
  • NOVA 290GV + 25VL metal lathe/milling machine
SORME290VFBF25


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €5,399.00
Save 15% -€809.85
€4,589.15 vat 25.5 %
3 656,69 €
tax excl.
Get price drop alerts
Quantity
In stock

Description

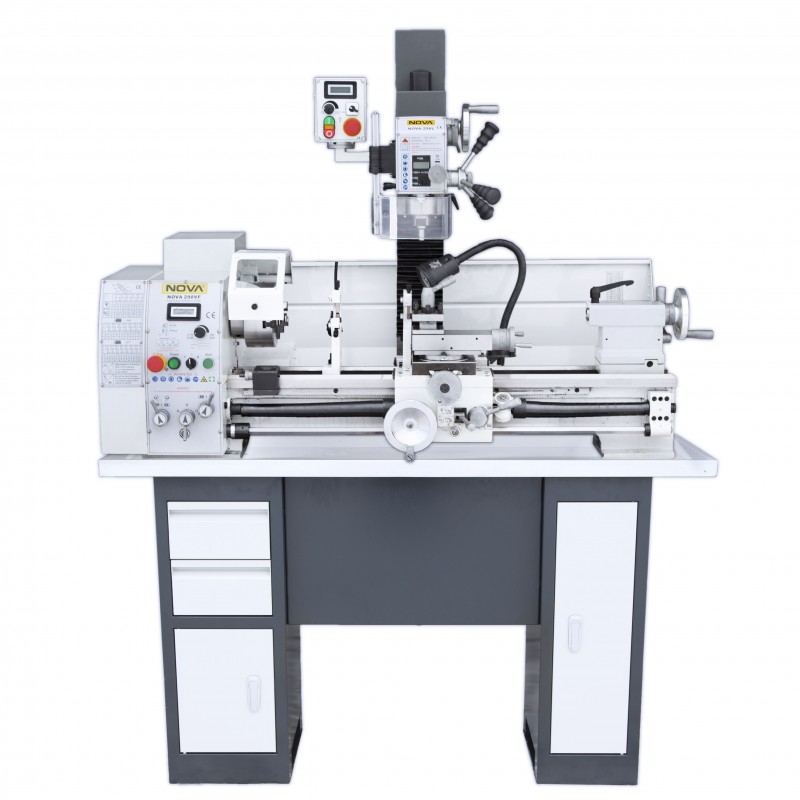

TOP-QUALITY NOVA 290VF + 25V COMBINATION MACHINE for turning, drilling, milling, and grinding!
The new model has a 700 mm distance between centers and automatic longitudinal and cross feed. Powerful 1100
W motor, stepless spindle speed control, and a digital readout (DRO) for RPM and chuck thread.
Spindle bore: 38 mm. A cast-iron, hardened bed and induction-hardened and ground bed ways
enable accuracy of 0.04/0.01 mm. Versatile threading options and high-quality
tapered roller bearings. The lathe has a chuck guard, emergency stop, and undervoltage release. The milling/drilling machine has its own powerful 750 W motor and a rigid dovetail frame, ensuring stability and top accuracy. Suitable drilling and milling angles are always available in both directions with a milling head that swivels 90°. A precise scale is also provided for milling head height, with a longitudinal travel stop.

INCLUDED: 3-jaw chuck, centers (MK2 & MK4 dead centers), gear set for threading, rear chip guard, flange mounting plate 200 mm, chip pan/chip tray, wrenches, toolbox.

The stand shown in the pictures is an optional accessory.

Data sheet

Voltage (V)
230
Rated Power (W)
Lathe 1500 / milling 750
Motor
Frequency converter motor 3-phase 230V
Head tilt (°)
90
Spindle
MT3
Spindle travel (mm)
70
Distance between centers (mm)
700
Swing over bed (mm)
290
Spindle bore (mm)
38 (MT5)
Max tool (mm)
12
Tailstock barrel taper
MT3
Cross slide travel Y (mm)
70
Cross slide travel X (mm)
140
Feeding speed Y (mm/r)
0,07 - 0,2 mm/r
Feeding speed X (mm/r)
0,02 - 0,28 mm/r
Range of threads (metric)
0,4 - 3,5 mm (18 pcs)
Range of threads (inches)
8 - 56 T.P.I (21 pcs)
Rotating speed (rpm)
Lathe 50-850 / 100-1800 variableMilling 50-2250 Variable
Width (mm)
680
Length (mm)
1260
Height (mm)
950
Weight (kg)
250
Warranty
1 year
Show all
