NOVA 50CW Milling Machine
In stock

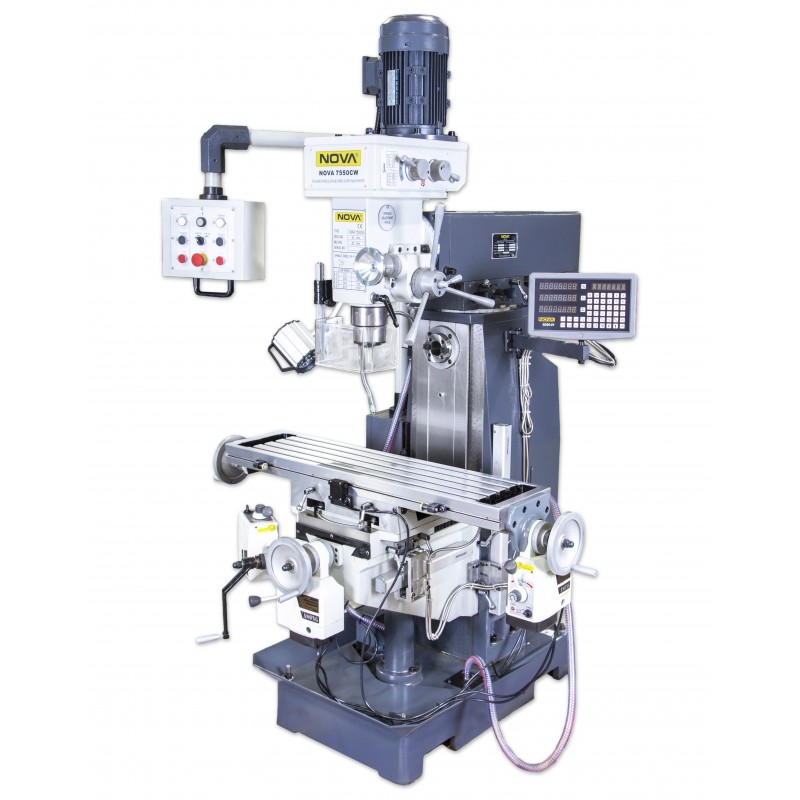

The NOVA 50CW metal milling machine offers power and precision. Its 1000 x 240 mm table enables machining of large workpieces. A three-axis digital readout (DRO) and versatile tooling ensure high-quality results.
JYR50CW
Always affordable prices
Fast delivery
Reliable warranty
€11,599.00
vat 25.5 %
tax excl.
Description
The NOVA 50CW metal milling machine is the professional’s choice when efficiency and precision are required for metalworking. This machine handles demanding tasks flawlessly. Its milling capacity of 100/30 mm also enables the execution of more complex projects. The milling machine is equipped with an ISO40 spindle, which supports versatile tool use. The machine has two separate 1500 W motors for the vertical axis and the horizontal axis.
This milling machine combines quality and durability. Its 1000 x 240 mm table size allows the handling of larger workpieces. A three-axis Sino digital readout (DRO) ensures accuracy during operation. Infinitely adjustable longitudinal and cross feed provide flexibility and adaptability for the work.
INCLUDED: digital display, LED work light, cooling system, adapter sleeves ISO40->MK3, MK3->MK2, ISO40/B18 drill taper, horizontal milling arbors ISO40/27 mm, ISO40/22 mm, drill chuck 3-16 mm/B18, T-slot bolts, 2 pcs.
The NOVA 50CW offers an excellent solution for metalworking. If you are interested in more information or would like to discuss the machine’s suitability for your needs, please get in touch.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 850/1500 (V) - 1500 (H)
- Rotating speed (rpm)
- 115-1750 (V) 8 pcs 60-1350 (H) 9 pcs
- Drilling capacity (mm)
- 30
- Milling capacity (mm)
- 100 / 25
- Head tilt (°)
- +-45
- Spindle
- ISO40
- Table T -slots (mm)
- 14
- Spindle max distance to table (mm)
- 60-360
- Distance spindle to column (mm)
- 250-650
- Spindle travel (mm)
- 120
- Main table size (mm)
- 1000X240
- Cross slide table movement (mm)
- 580 X 230
- Horizontal spindle distance to table (mm)
- 20-320
- Width (mm)
- 1400
- Length (mm)
- 1150
- Height (mm)
- 2080
- Weight (kg)
- 850
- Warranty
- 1 year
