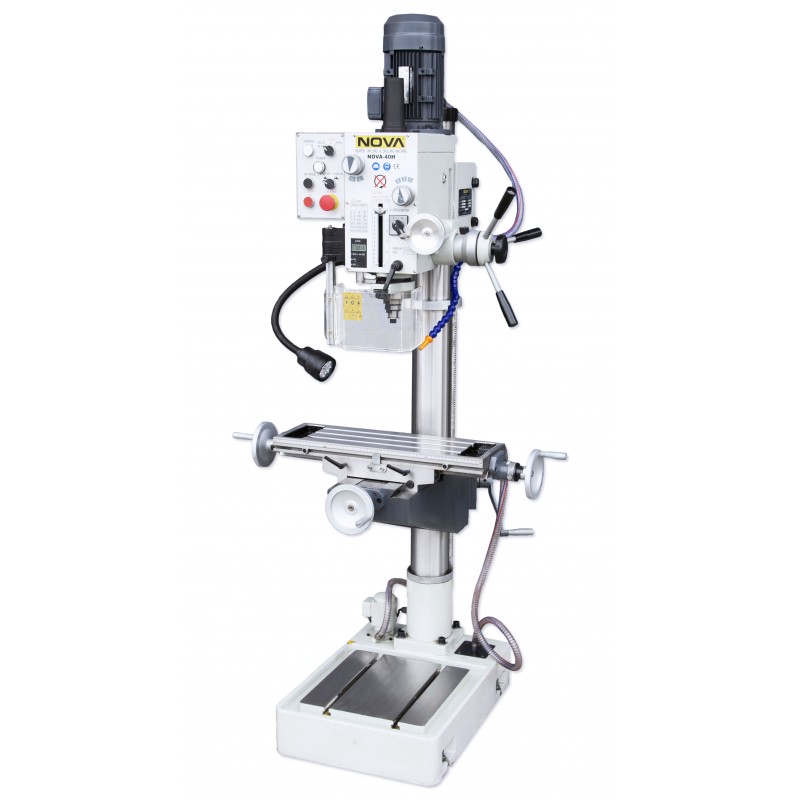

NOVA 40H combines milling and drilling. The machine has a 1100 W motor and a 12-speed gearbox, enabling a spindle speed of 75–3200 rpm. The milling capacity is 32 mm, and the drilling capacity is 40 mm. The machine’s table and travel range provide a large working area.
Always affordable prices
Fast delivery
Reliable warranty
The NOVA 40H milling/drilling machine combines the benefits of both drilling and milling. The machine features an 1100-watt motor that provides sufficient power for a wide range of tasks. In addition, the 12-speed gearbox allows the spindle speed to be adjusted over a wide range, from 75 to 3200 rpm. This makes it possible to optimize the speed for different materials and applications. The milling capacity is 32 mm and the drilling capacity is 40 mm, making the machine a versatile tool.
The machine’s 600 x 190 mm table and 370 x 190 mm travel provide a large working area, enabling effortless machining of even larger workpieces. The milling head tilts 90 degrees in both directions, increasing the machine’s suitability for different types of angled projects. The machine’s tapping function and automatic direction reversal add value, especially in more complex machining operations.
Standard equipment:
13 mm drill chuck Face-milling arbor MK4 Adapter sleeves MK4->MK3 and MK3->MK2 T-slot clamping bolts Drift key Oil can
The NOVA 40H’s robust construction and versatile features make it an ideal choice for professionals and experienced hobbyists who value precision and reliability.
Data sheet
