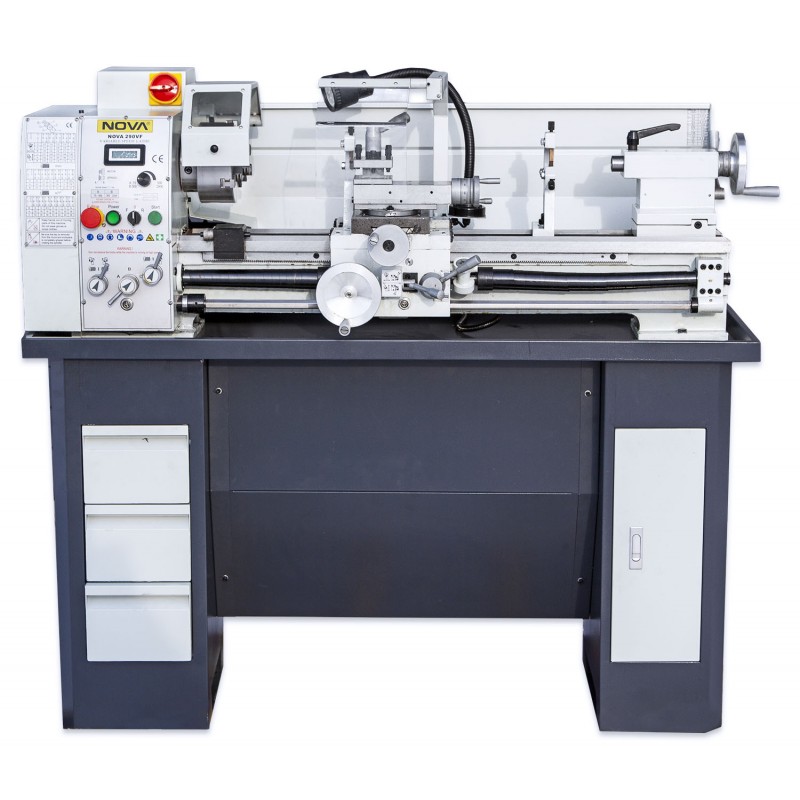

NOVA 290VF Metal Lathe

In stock

The NOVA 290VF metal lathe offers top-class accuracy and performance. Its 1,500 W motor and variable frequency drive (VFD) enable stepless speed control. Weighing 210 kg, it ensures stability.

  • -15%
NOVA 290VF Metal Lathe
search
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
  • NOVA 290VF Metal Lathe
SORME290VFJ


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €4,299.00
Save 15% -€644.85
€3,654.15 vat 25.5 %
2 911,67 €
tax excl.
Get price drop alerts
Quantity
In stock

Description

The NOVA 290VF metal lathe is designed for both metalworking hobbyists and professionals who demand top-quality performance and precision. At the heart of the lathe is a 1,500-watt three-phase motor operating at 230 volts, delivering excellent torque at all speeds. A variable frequency drive (VFD) enables stepless speed control from 50 to 2,000 rpm, making turning work flexible and accurate.

The maximum workpiece diameter is 290 mm, and the distance between centers is 700 mm, enabling precise work even on larger parts. The lathe’s spindle bore is 38 mm, expanding the range of materials and workpieces that can be machined. The 210 kg frame ensures stable operation and reduces vibration, improving work quality.

Standard equipment:

  1. Stand
  2. 160 mm 3-jaw chuck
  3. Dead centers (MK3 & MK5)
  4. Gear set for threading
  5. Steady rest and follow rest
  6. Rear chip guard
  7. Wrenches
  8. Toolbox

With a cast-iron, hardened bed and induction-hardened and ground bed ways, this lathe delivers precision to a level of 0.04/0.01 mm. A digital RPM display makes it easy to set exact spindle speeds, and automatic longitudinal and cross-feed features improve workflow efficiency. Safety features such as an emergency stop and undervoltage release enhance user safety.

The NOVA 290VF is an ideal choice if you are looking for a versatile and powerful metal lathe. Contact us for more information or order yours now.

Data sheet

Voltage (V)
230
Rated Power (W)
1500
Motor
Frequency converter motor 3-phase 230V
Rotating speed (rpm)
50-2000
Distance between centers (mm)
700
Swing over bed (mm)
290
Spindle bore (mm)
38
Max tool (mm)
12
Tailstock barrel taper
MT3
Tailstock barrel travel (mm)
70
Cross slide travel Y (mm)
70
Cross slide travel X (mm)
140
Feeding speed Y (mm/r)
0.07-0.72
Feeding speed X (mm/r)
0.017-0.25
Range of threads (metric)
0,2-3,5 (18pcs)
Range of threads (inches)
8-56 (21pcs)
Width (mm)
1400
Length (mm)
620
Height (mm)
520
Weight (kg)
210
Warranty
1 year
