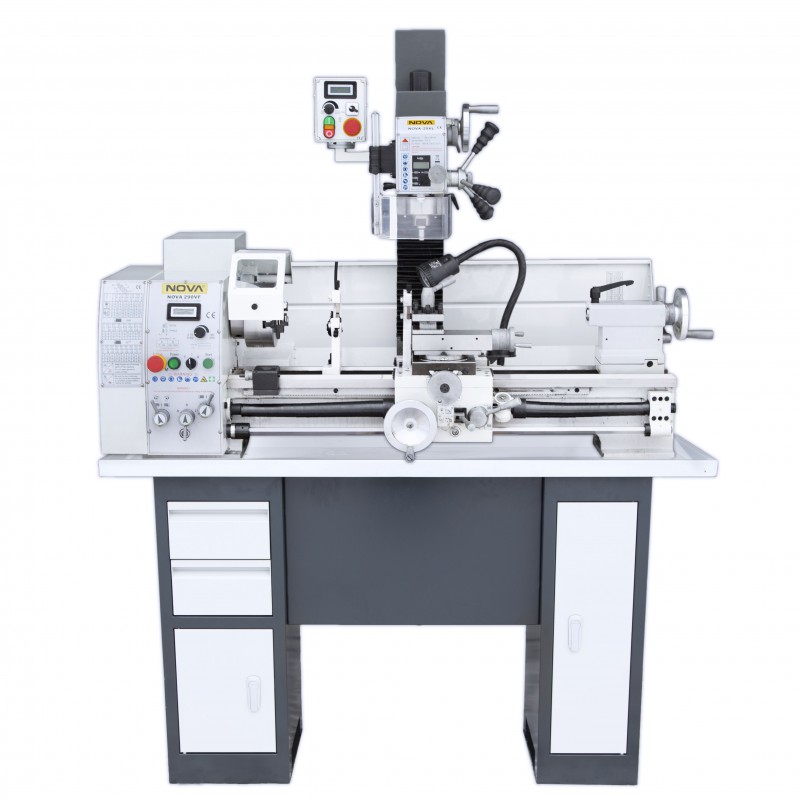

NOVA 290VF + 25VL metal lathe/milling machine
NOVA 290VF + 25V COMBINATION MACHINE with which you turn, drill, mill and grind. 700 mm between centers and automatic longitudinal and lateral feed.
Description

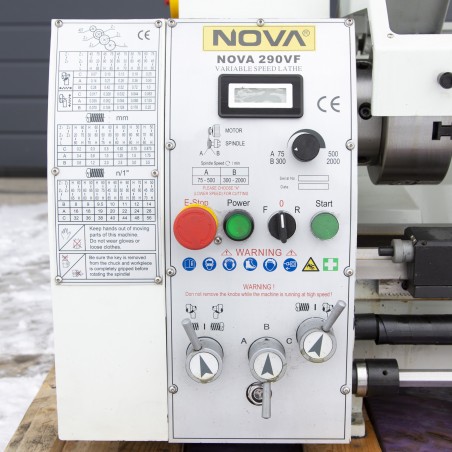

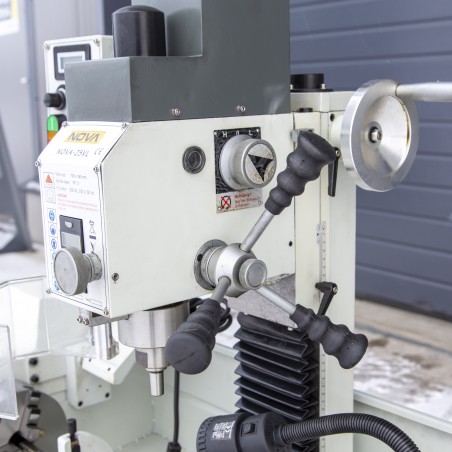

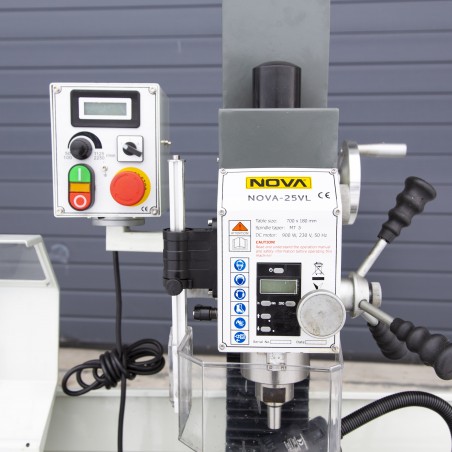

Introducing the NOVA 290VF + 25V Combination Machine - the ultimate tool for turning, drilling, milling, and grinding. With a 700 mm distance between centers and automatic longitudinal and lateral feed, this machine is incredibly efficient. It is powered by a 1100W motor and features stepless speed control with a digital display for RPM. With a 38 mm hole through the spindle and high-quality roller bearings, this machine is versatile and precise. The bed is made of cast iron and has induction hardened and machined slide bars for accuracy up to 0.04/0.01 mm. For added safety, the lathe includes chuck protection, an emergency stop, and an undervoltage switch. The cutter/drill has its own 750W motor and a sturdy dove-tail frame for stability and accuracy. The milling head can be rotated 90° to ensure accurate drilling and milling angles, and the measuring scale allows for precise adjustment of the milling head height. With a ball bearing spindle, the concentricity deviation is under 0.015 mm (measured on the chuck).

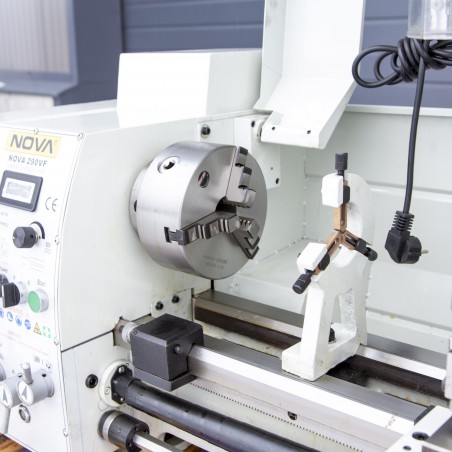

This package includes a 3-jaw chuck, dead centers (MT2 & MT4 fixed), a gear set for threading, a 200 mm faceplate, a back plate, an oil pan, wrenches, and a tool box. The stand in the picture is optional. Upgrade your workshop with the NOVA 290VF + 25V Combination Machine.
Data sheet
- Voltage (V)
- 230
- Rated Power (W)
- Lathe 1100 / milling 750
- Rotating speed (rpm)
- Lathe 50-850 / 100-1800 variableMilling 50-2250 Variable
- Head tilt (°)
- 90
- Spindle
- MT3
- Spindle travel (mm)
- 70
- Distance between centers (mm)
- 700
- Swing over bed (mm)
- 290
- Spindle bore (mm)
- 38 (MT5)
- Max tool (mm)
- 12
- Tailstock barrel taper
- MT3
- Cross slide travel Y (mm)
- 70
- Cross slide travel X (mm)
- 140
- Feeding speed Y (mm/r)
- 0,07 - 0,2 mm/r
- Feeding speed X (mm/r)
- 0,02 - 0,28 mm/r
- Range of threads (metric)
- 0,4 - 3,5 mm (18 pcs)
- Range of threads (inches)
- 8 - 56 T.P.I (21 pcs)
- Width (mm)
- 680
- Length (mm)
- 1260
- Height (mm)
- 950
- Weight (kg)
- 250
- Warranty
- 1 year
