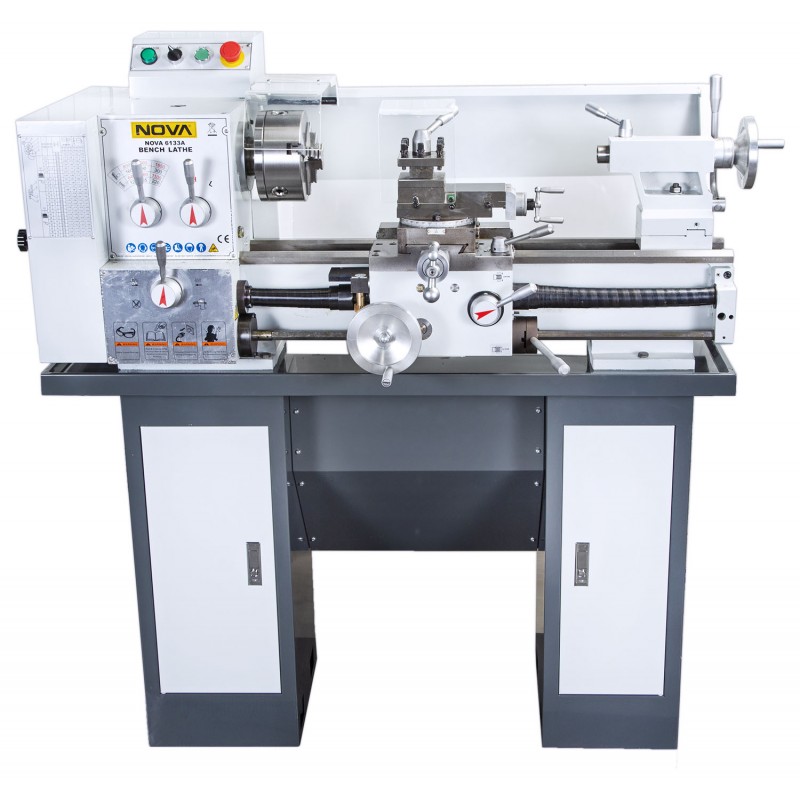

NOVA 6133B 380V Metal Lathe
NOVA 6133B (380 V) lathe with very versatile equipment. Automated longtitudal and vertical feeds.
Description
NOVA 6133B (380 V) centre lathe with very versatile equipment. The price includes the back plate and the stand. The slide bars are induction hardened. Distance between centres is 600 mm, and a 320 mm big piece has space to rotate in the chuck. Automated longitudinal and vertical feeds. Powerful motor (1100 V). Vibration-free body and strong structure.
Includes: 3 jaw chuck (160 mm), gear set, live center, backplate, tool box and stand.
Data sheet
Voltage (V)
380
Rated Power (W)
1100
Rotating speed (rpm)
65-1600 (12 speed)
Distance between centers (mm)
600
Swing over bed (mm)
320
Spindle bore (mm)
38
Max tool (mm)
16
Tailstock barrel taper
MT3
Tailstock barrel travel (mm)
70
Cross slide travel Y (mm)
100
Cross slide travel X (mm)
170
Feeding speed Y (mm/r)
0,1 - 1,4
Feeding speed X (mm/r)
0,022 - 0,3
Range of threads (metric)
0,5 - 4 (17 pcs)
Range of threads (inches)
9-48 TPI (26)
Width (mm)
1400
Length (mm)
660
Height (mm)
520
Weight (kg)
255
Warranty
1 year
