NOVA 250VF Metal Lathe

In stock


NOVA 250VF Metal Lathe
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
  • NOVA 250VF metallisorvi
SORME250VF
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
2,620.32 € vat 25.5 %
2 087,90 €
tax excl.
notifications_active Subscribe price drop
Quantity
In stock

Description

550 mm gap and with automatic longitudinal and lateral feed. Powerful 750 W motor, stepless speed control and digital RPM display. Spindle bore 26 mm. Cast iron, hardened core and induction hardened and grounded conductors allow accuracy of 0.04/0.01 mm. Versatile threading options and high-quality tapered roller bearings.

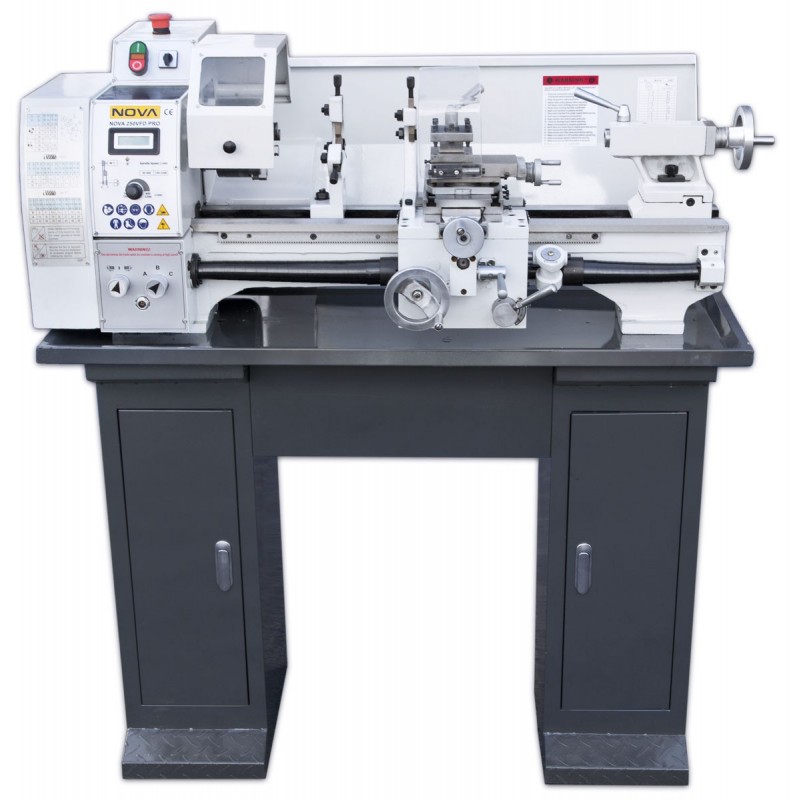

Note. The stand, steady rest and follow rest in the image are not included.

Data sheet

Voltage (V)
230
Rated Power (W)
750
Rotating speed (rpm)
30-2200 (stepless)
Distance between centers (mm)
550
Swing over bed (mm)
250
Swing over cross slide (mm)
150
Spindle bore (mm)
26
Max tool (mm)
12
Tailstock barrel taper
MT2
Tailstock barrel travel (mm)
80
Carriage movement (mm)
450
Cross slide travel Y (mm)
70
Cross slide travel X (mm)
115
Feeding speed Y (mm/r)
0,07-0,20
Feeding speed X (mm/r)
0,03-0,075
Range of threads (metric)
0,2-3,5 (18 pcs)
Range of threads (inches)
8-56 (21 pcs)
Width (mm)
1250
Length (mm)
600
Height (mm)
500
Weight (kg)
120
Warranty
1 year
Show all
