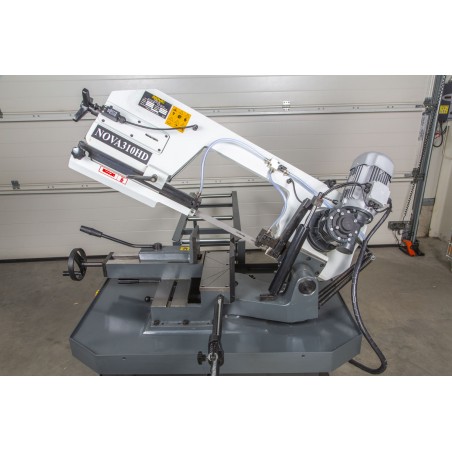

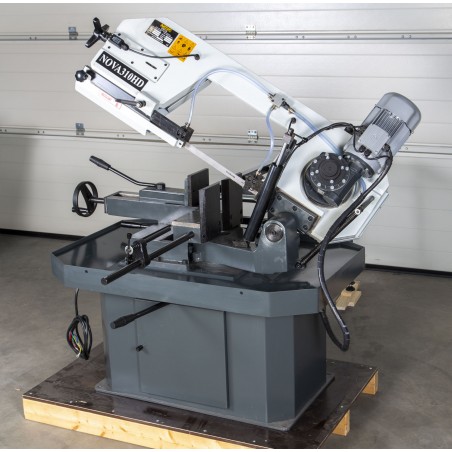

NOVA 310HD Metal Cutting Band Saw
NOVA 310HD is a metal band saw that has become very popular all over the world with a very competitive price-quality ratio.
Description

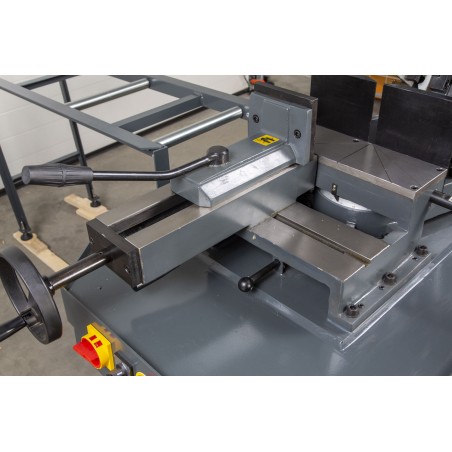

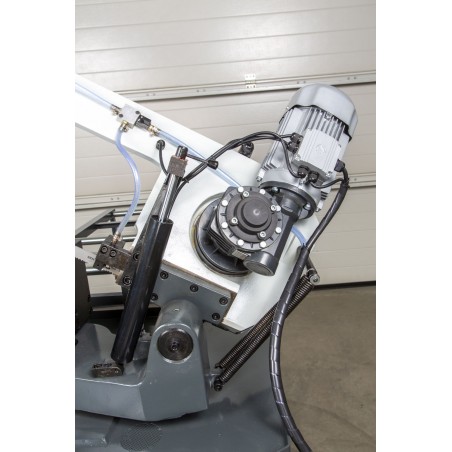

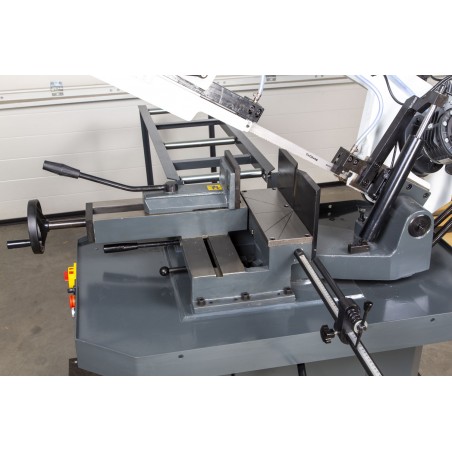

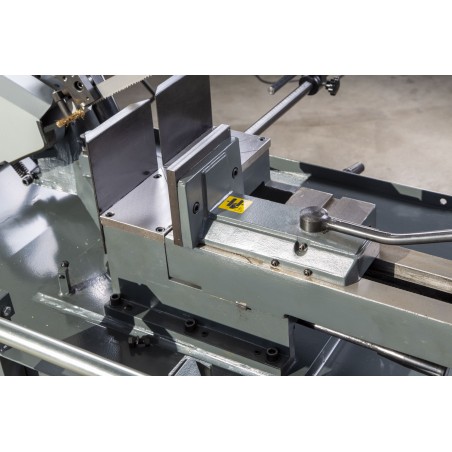

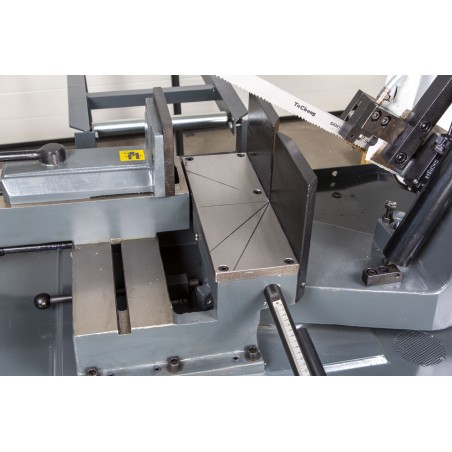

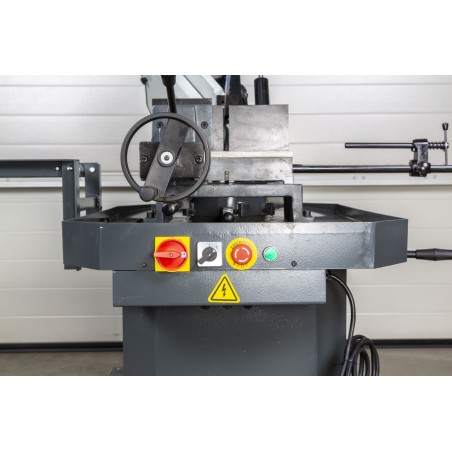

NOVA 310HD is a metal band saw that has become very popular all over the world with a very competitive price-quality ratio. NOVA 310HD has a 1100/850 W motor, 2750 x 27 x 0.9 mm saw blade. Blade speed: 53/79 m/min. Blades that can be pivoted in both directions, saw angle adjustment: -45° and + 60° and quick fastening for attachment of the piece to be sawn. Large sawing capacity: 250 mm in 90° straight sawing. Stand and cooling pump as standard equipment. 350 kg heavy. Work comfort and safety are obtained with hydraulic lowering of the blade and automatic stop. Convenient and practical control panel. Indicator for blade tension. A metal saw does not get any better than this!

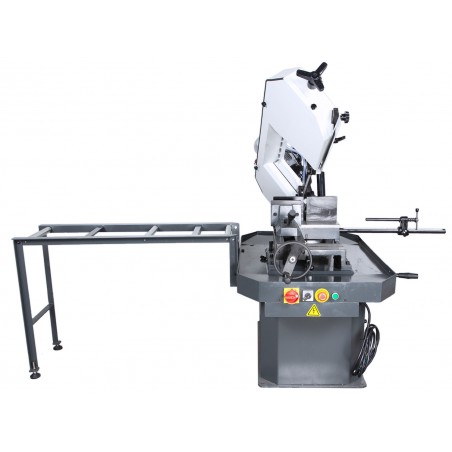

NOTE! Roller stand in the picture is not included.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 1100 / 850
- Motor (rpm)
- 930/1400
- Blade speed (m/min)
- 53/79
- Blade size (mm)
- 2750 x 27 x 0,9
- Cutting angle (°)
- -45 / +60
- Maximum capacity rectangular (mm)
- 90° 280 x 240 mm, 45° 200 x 240 mm, 60° 125 x 240 mm, Left 45° 225 x 240 mm (L x K)
- Maximum capacity circular (mm)
- 90° 250 mm, 45° 200 mm, 60° 125 mm, Left 45° 225 mm
- Second table size (mm)
- 1000
- Table height (mm)
- 740
- Bandsaw wheel diameter (mm)
- 334
- Width (mm)
- 900
- Length (mm)
- 1300
- Height (mm)
- 1350 (1650)
- Weight (kg)
- 350
- Warranty
- 1 year
