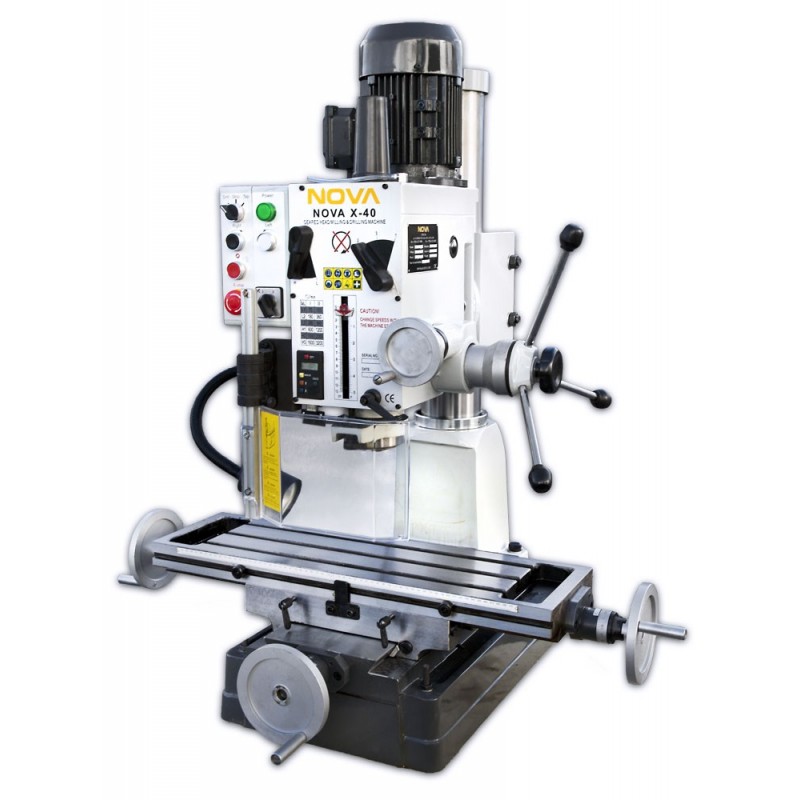

NOVA X-40 Milling Machine
In stock
The NOVA X-40 milling machine is suitable for both hobbyists and professionals. It has a 1.1 kW motor and 12 speeds (75–3200 rpm). The milling capacity is 76/32 mm, and the drilling capacity is 40 mm. The table size is 800 × 240 mm. The machine features a micro-feed, and the table tilts 90° in both directions.
JYRX40
Always affordable prices
Fast delivery
Reliable warranty
€3,699.00
vat 25.5 %
tax excl.
Description
The NOVA X-40 milling machine is designed to meet the high demands of both hobbyists and professionals. This milling machine is equipped with a precision-adjustable gear drive system, ensuring smooth drilling and milling operations. Its 1.1 kW motor provides sufficient power for a variety of milling tasks. The milling machine’s spindle speed can be set to 12 different speeds (75–3200 rpm), enabling the machining of many different materials.
What stands out about the NOVA X-40 milling machine is its impressive milling and drilling capacity: milling capacity 76 / 32 mm, drilling capacity 40 mm. This makes the machine a highly versatile tool for workshop use and a wide range of technical projects. The table size is generously dimensioned at 800 x 240 mm, and the longitudinal travel of 560 mm, combined with a cross travel of 190 mm, allows for handling various workpieces. The table features 14 mm T-slots, which make clamping easier and expand the machine’s usability.
An additional advantage of the milling machine is the “Micro-feed” feed function, which enables precise feed control and is especially useful for work requiring high accuracy. The tilting milling head, with a 90-degree tilt in both directions, further increases the machine’s suitability for complex milling tasks, offering excellent flexibility for milling and drilling at different angles.
Standard accessories included in the delivery are as follows:
- Drill chuck
- Face milling arbor, MT4
- Adapter sleeves MT4->MT3 and MT3->MT2
- T-slot clamping bolts
- Drift key
- Oil can
- Wrenches
Contact us for more information, or buy directly from our online store to secure the availability of this versatile tool.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 1100
- Motor (rpm)
- 2850
- Rotating speed (rpm)
- 75-3200 (12 speed)
- Drilling capacity (mm)
- 40 / 32
- Milling capacity (mm)
- 76 / 32
- Head tilt (°)
- 90
- Spindle
- MT4
- Table T -slots (mm)
- 14
- Spindle max distance to table (mm)
- 450
- Spindle travel (mm)
- 120
- Main table size (mm)
- 800 x 240
- Table movement (mm)
- 560X190
- Weight (kg)
- 285
- Warranty
- 1 year
