NOVA BF30V Milling Machine
In stock
NOVA BF30VL milling machine. We offer very high-quality metal milling machines at an affordable price. Also available with a large Sino digital readout (DRO) display, making machining very easy and accurate.
JYRBF30VL
Always affordable prices
Fast delivery
Reliable warranty
Regular price €3,699.00
Save
20%
-€739.80
€2,959.20
vat 25.5 %
tax excl.
Description
The NOVA BF30VL milling machine is a powerful and versatile solution suitable for a variety of machining tasks, such as milling, drilling, grinding, and tapping. The machine’s 1.1 kW motor provides sufficient power for demanding jobs. The dovetail slide ensures high quality and accuracy, enabling precision down to 0.01 mm. The milling head can be tilted 45 degrees in both directions, helping to achieve an excellent surface finish.
The table size is 840 x 210 mm, and its travel range is 590 x 220 mm, providing enough space even for large workpieces. The milling capacity is up to 30/70 mm, and the drilling capacity is 30 mm, ensuring versatility across many applications.
The NOVA BF30VL is equipped with stepless speed control, allowing precise control of the milling process. The continuously adjustable spindle speed range of 50–2250 rpm provides suitable settings for different machining speeds.
The cross-feed table, included as standard, improves working comfort and usability. Available clamping solutions and accessories make it possible to customize the machine to suit your needs.
Learn more about the features of the NOVA BF30VL milling machine on our website, or contact us for more information.

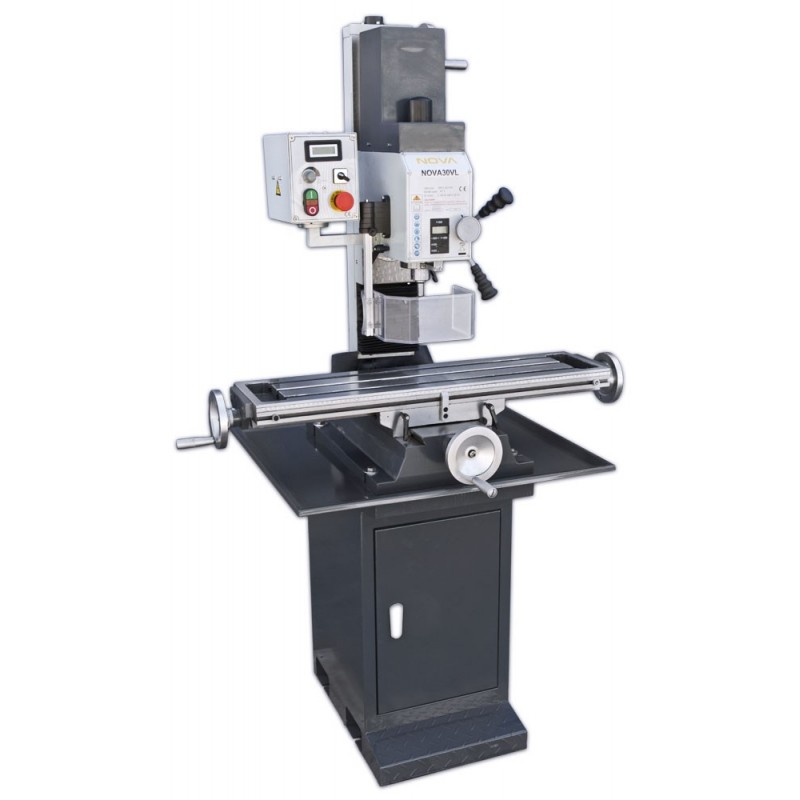

The stand shown in the pictures is an optional accessory.
Data sheet
- Voltage (V)
- 230
- Rated Power (W)
- 1100
- Drilling capacity (mm)
- 30
- Milling capacity (mm)
- 30 / 70
- Head tilt (°)
- 90
- Spindle
- MT3
- T-slot distance
- 63
- Table T -slots (mm)
- 14
- Spindle max distance to table (mm)
- 360
- Spindle travel (mm)
- 70
- Main table size (mm)
- 840 x 210
- Table movement (mm)
- 590 x 220
- Noise level dB(A)
- 78
- Rotating speed (rpm)
- 50-2250
- Width (mm)
- 1030
- Length (mm)
- 680
- Height (mm)
- 1210
- Weight (kg)
- 235
- Warranty
- 1 year
