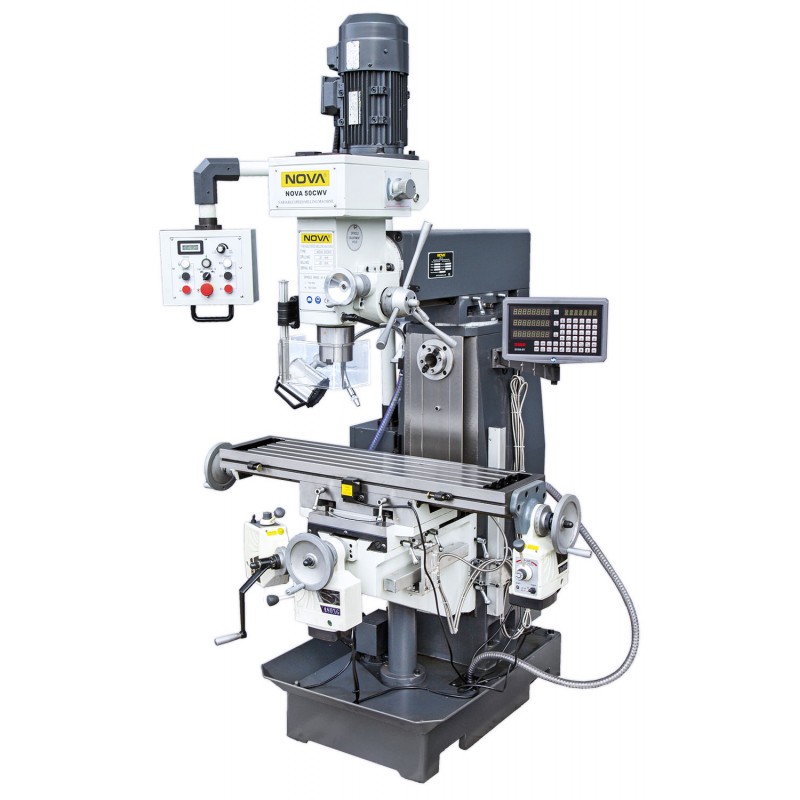

NOVA 50CWV Milling Machine, stepless speed control
In stock
The NOVA 50CWV milling machine is a precise and powerful tool designed for professionals. Powerful motors and stepless speed control ensure versatility. The ISO40-standard spindle ensures tool compatibility.
JYR50CWV
Always affordable prices
Fast delivery
Reliable warranty
€13,099.00
vat 25.5 %
tax excl.
Description
The NOVA 50CWV milling machine is designed for demanding professional use, making it an ideal choice for those looking for a reliable and precise milling tool. This model features powerful motors: 2.2 kW for the horizontal spindle and 1.5 kW for the vertical spindle. Stepless speed control via a variable frequency drive (VFD) enables flexible adjustment of machining speed, improving both accuracy and work efficiency.
The machine’s table dimensions are 1000 x 240 millimetres, and the travel range is 580 x 230 millimetres. This provides sufficient workspace for a variety of projects. The milling capacity is 100/25 mm and the drilling capacity is 30 mm, making the machine a versatile tool for different applications. In addition, the ability to tilt the milling head to 45 degrees further increases flexibility.
The NOVA 50CWV spindle follows the ISO40 standard, ensuring compatibility with widely available tooling. A 3-axis digital readout (DRO) ensures accurate results during operation. The Y-axis has automatic feed, making work smoother. Standard equipment also includes a coolant system.
The NOVA 50CWV milling machine combines durable construction with precise machining results, providing a strong foundation for efficient work. This model is perfect for professionals who value both efficiency and accuracy.
If you would like more information or are ready to place an order, please feel free to contact us.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 2,2kW + 1,5kW
- Rotating speed (rpm)
- 100-600/350-2000 (V) 60-1350/70-1600 (H)
- Drilling capacity (mm)
- 30
- Milling capacity (mm)
- 100/25
- Head tilt (°)
- 45
- Spindle
- ISO40
- Table T -slots (mm)
- 12
- Spindle max distance to table (mm)
- 70-370
- Distance spindle to column (mm)
- 250-650
- Spindle travel (mm)
- 120
- Main table size (mm)
- 1000 x 240
- Table movement (mm)
- 580 X 230
- Width (mm)
- 1100
- Length (mm)
- 1280
- Height (mm)
- 2100
- Weight (kg)
- 850
- Warranty
- 1 year
