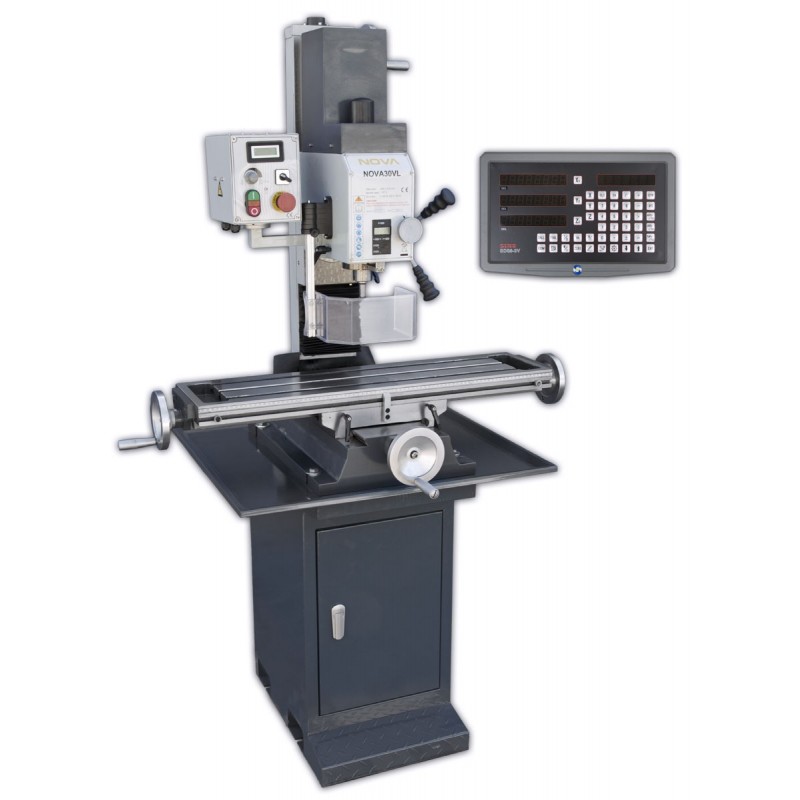

NOVA BF30VL Milling Machine with Digital Display

Out of stock (ask delivery time)

The NOVA BF30VL is a versatile milling machine for demanding work. The 1,100 W brushless motor, 840 x 210 mm table, and 0.01 mm accuracy ensure high-quality results. Infinitely variable speed control and a digital display guarantee precise control.

  • -15%
  • Out of stock (ask delivery time)
NOVA BF30V Milling Machine with Digital Display
search
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
  • NOVA BF30V Milling Machine with Digital Display
JYRBF30VLN.B


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €4,399.00
Save 15% -€659.85
€3,739.15 vat 25.5 %
2 979,40 €
tax excl.
Get price drop alerts
Quantity
Out of stock (ask delivery time)

Description

The NOVA BF30VL milling machine is a powerful and versatile solution suitable for a variety of machining tasks, such as milling, drilling, grinding, and tapping. The machine’s 1.1 kW brushless motor provides sufficient power for demanding jobs. The dovetail slide ensures high quality and precision, enabling accuracy down to 0.01 mm. The milling head can be tilted 45 degrees in both directions, helping to achieve an excellent surface finish.

The table size is 840 x 210 mm, and the travel range is 590 x 220 mm, providing ample space even for large workpieces. The milling capacity is up to 30/70 mm, and the drilling capacity is 30 mm, ensuring versatility across many applications.

The NOVA BF30VL is equipped with a digital readout (DRO) for the X and Y axes and stepless speed control, enabling precise control of the milling process. The steplessly adjustable spindle speed from 50 to 2250 rpm provides suitable settings for different machining speeds. With the Sino DRO, working accuracy and the user experience are improved even further.

The cross-feed table, included as standard, increases working comfort and usability. Available clamping solutions and accessories allow the machine to be customized to suit your needs.

Learn more about the features of the NOVA BF30VL milling machine on our website, or contact us for more information.

The stand shown in the pictures is an optional accessory.

30VL mitat__.jpg




Data sheet

Voltage (V)
230
Rated Power (W)
1100
Motor (rpm)
50-2250
Drilling capacity (mm)
30
Milling capacity (mm)
30 / 70
Head tilt (°)
90
Spindle
MT3
T-slot distance
61
Table T -slots (mm)
14
Spindle max distance to table (mm)
360
Spindle travel (mm)
70
Main table size (mm)
840 x 210
Table movement (mm)
590 x 220
Noise level dB(A)
78
Width (mm)
1030
Length (mm)
680
Height (mm)
1210
Weight (kg)
235
Warranty
1 year
