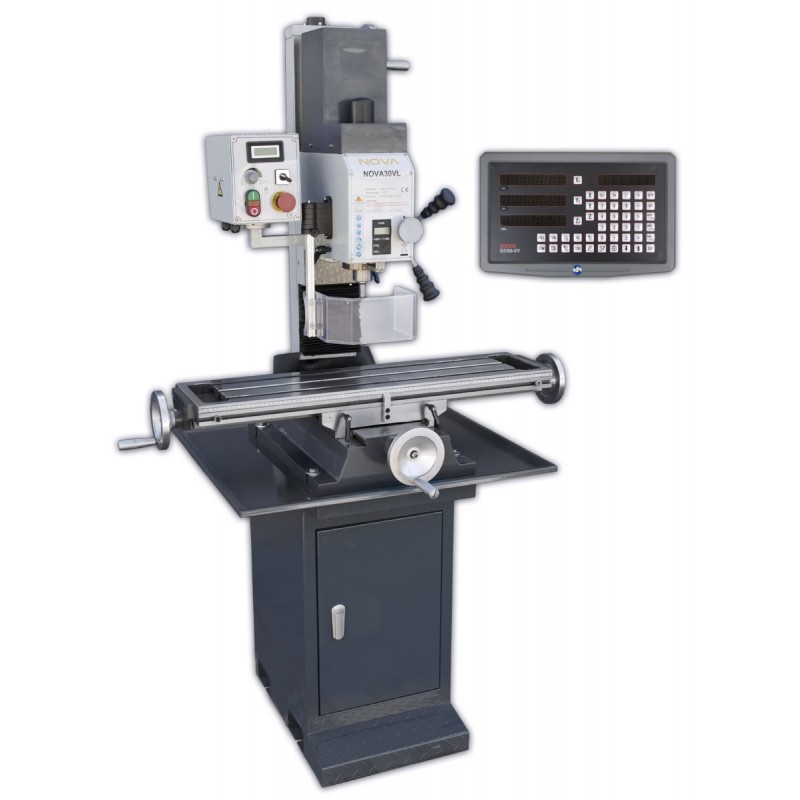

NOVA BF30VL Milling Machine with Digital Display
NOVA BF30VL is with a 1.1 kW motor and 30 mm drilling capacity an ideal machine for milling, drilling, grinding and threading.
Description
NOVA BF30VL is with a 1.1 kW motor and 30 mm drilling capacity an ideal machine for milling, drilling, grinding and threading. Sturdy dovetail-frame, 0.01 mm accurate machining results and with gradients of 45 degrees in both directions ensures a qualitative result. Work comfort is guaranteed with a high-quality cross-feed table, digital display for movement of the spindle. Stepless speed adjustment. Reverse and two speed ranges. Also available with a large Sino digital display
The stand in the picture is accessory
Data sheet
Voltage (V)
230
Rated Power (W)
1100
Motor (rpm)
50-2250
Drilling capacity (mm)
30
Milling capacity (mm)
30 / 70
Head tilt (°)
90
Spindle
MT3
T-slot distance
61
Table T -slots (mm)
14
Distance spindle to table (mm)
360
Spindle travel (mm)
70
Main table size (mm)
840 x 210
Table movement (mm)
590 x 220
Noise level dB(A)
78
Width (mm)
1030
Length (mm)
680
Height (mm)
1210
Weight (kg)
235
Show all
