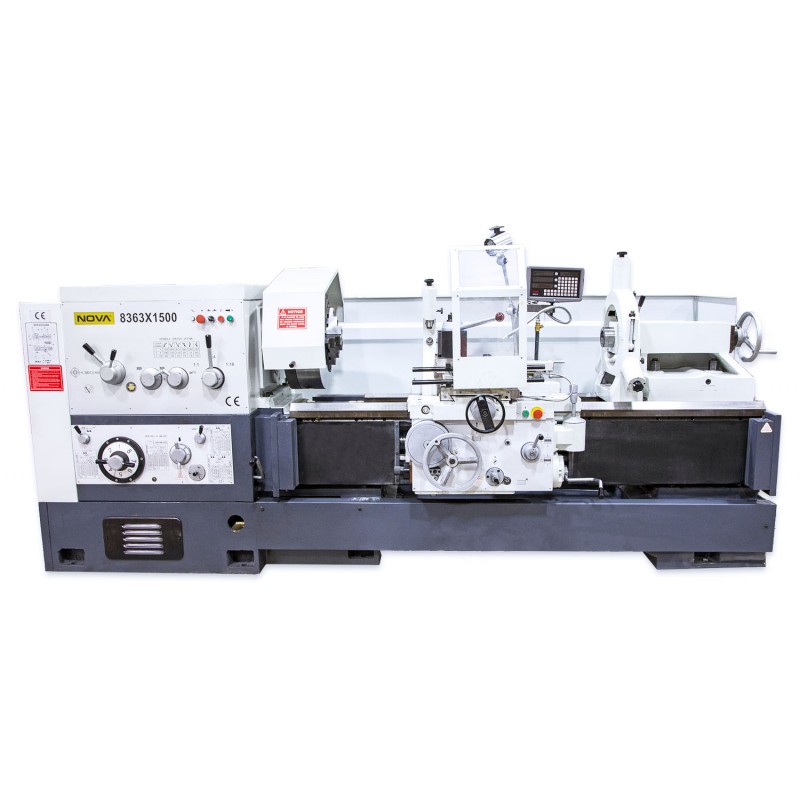

NOVA 8363 × 1500 Centre Lathe

Name: NOVA 8363 × 1500 Centre Lathe
Brand: NOVA
SKU: SORME836315
Price: 48499 EUR
Availability: BackOrder

Pre-order product - Delivery time 4-5 months

The NOVA 8363 X 1500 center lathe is designed for demanding metalworking. The 1500 mm distance between centers enables the handling of large workpieces. The powerful 15 kW motor and Sino digital readout (DRO) improve productivity.

Reference SORME836315

Always affordable prices

Fast delivery

Reliable warranty

Brand

NOVA

€48,499.00 vat 25.5 %

38 644,62 €
tax excl.

Quantity

Pre-order product - Delivery time 4-5 months

Description

The NOVA 8363 X 1500 center lathe is designed for demanding metalworking, offering excellent performance and precision for heavy-duty tasks. This metal lathe is specifically aimed at industrial professionals who value durability and versatility. Its 1500 mm distance between centers enables the machining of large workpieces. The maximum workpiece diameter is an impressive 630 mm, and with the the gap piece removed, the diameter can be up to 830 mm. The center lathe’s powerful 15 kW three-phase motor and wide speed range (clockwise 14–750 rpm, counterclockwise 21–857 rpm) provide flexibility for different machining processes.

The lathe’s Sino digital readout (DRO) makes precision machining significantly easier. This ensures that the required dimensional accuracy is achieved every time. Automated longitudinal and cross feeds improve usability, while the induction-hardened and precision-machined ways guarantee high accuracy in demanding work.

The lathe is supplied with a wide range of standard accessories: a 3-jaw chuck (500 mm), a 4-jaw chuck (400 mm), a quick-change tool post with five holders, a steady rest, and two dead centers. Also included are a work light, a coolant system, tool wrenches, and eight machine feet.

This high-quality center lathe is the perfect solution for metalworking professionals who demand top performance and durability from their equipment. For more information or to make a purchase decision, feel free to contact us.

Data sheet

Voltage (V): 380
Rated Power (W): 15000
Rotating speed (rpm): clockwise 14-750 rpm (18) counterclockwise 21-857 rpm (9)
Distance between centers (mm): 1500
Swing over bed (mm): 630
Swing over gap (mm): 830
Swing over cross slide (mm): 345
Spindle bore (mm): 105 (MT6)
Max tool (mm): 32
Tailstock barrel taper: MT6
Tailstock barrel travel (mm): 200
Cross slide travel Y (mm): 230
Cross slide travel X (mm): 400
Feeding speed Y (mm/r): 72 pcs basic feed 32pcs 0.10-1.42 mm/r fine feed 8pcs 0.048-0.089 mm/r increased feed 32pcs 1.52-22.8 mm/r
Feeding speed X (mm/r): 72 kpl basic feed 32kpl 0.03-0.45 mm/r fine feed 8kpl 0.015-0.028 mm/r increased feed 32kpl 0.48-7.2 mm/r
Range of threads (metric): 1-240 (54)
Range of threads (inches): 1-28 TPI (36)
Range of threads (Module): 0.5~60mm (27)
Keermete vahemik (Pitch thread): 1-30 (27)
Fuse (A): 64
Width (mm): 1270
Length (mm): 3452
Height (mm): 1345
Weight (kg): 4700
Warranty: 1 year
