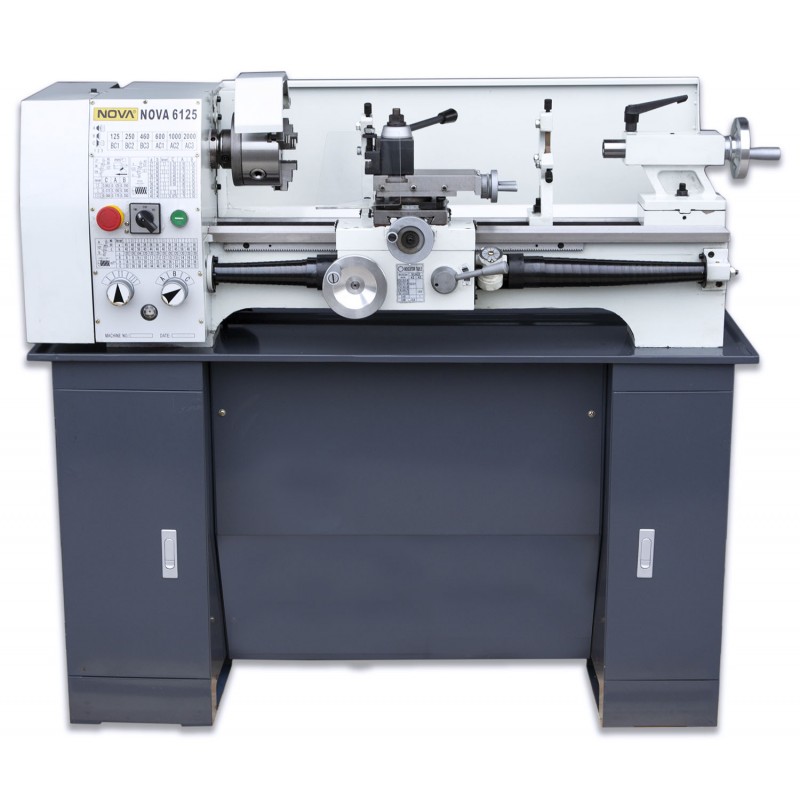

NOVA 6125B Metal Lathe

NOVA 6125B is a lathe with very versatile accessories. Stand and quick change tool system as standard.

SORME6125B
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
3,190.00 € vat 24 %
2 572,58 €
tax excl.
Quantity
In stock

Description

NOVA 6125B is a lathe with very versatile accesspries. Stand and quick change tool system as standard. A reliable and high-quality little lathe with a durable 750 watt motor. Induction hardened slide bars. Distance between centers is 550 mm, and a 254 mm piece has space to rotate in the chuck. The spindle bore is 26 mm. Cast iron, hardened core and induction hardened and ground conductors. Versatile threading possibilities.

INCLUDED: Quick change tool system + 4 cassettes, 125 mm 3-back chuck, replacement jaws, gear series, live center (fixed), spare belt, tools, tool box.

A stand is included as standard equipment.

Data sheet

Voltage (V)
380
Rated Power (W)
750
Rotating speed (rpm)
125 - 2000 (speeds 6)
Distance between centers (mm)
550
Swing over bed (mm)
254
Spindle bore (mm)
26
Max tool (mm)
12
Tailstock barrel taper
MT3
Cross slide travel Y (mm)
95
Cross slide travel X (mm)
115
Feeding speed Y (mm/r)
0,063 - 0,350 (9)
Range of threads (metric)
0,25-3,5 (18)
Range of threads (inches)
8-72TPI (32)
Width of bed (mm)
155
Width (mm)
1270
Length (mm)
460
Height (mm)
1090
Weight (kg)
190
Show all

Send a message


NOVA 6125B Metal Lathe

NOVA 6125B Metal Lathe
