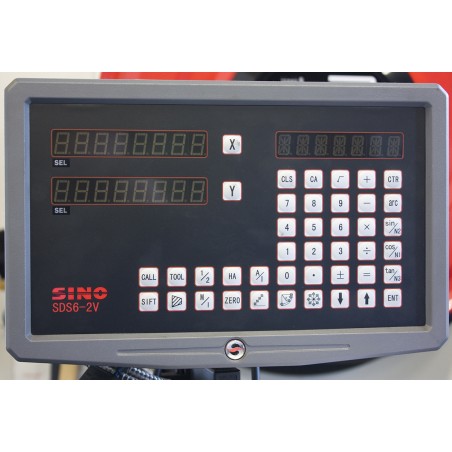

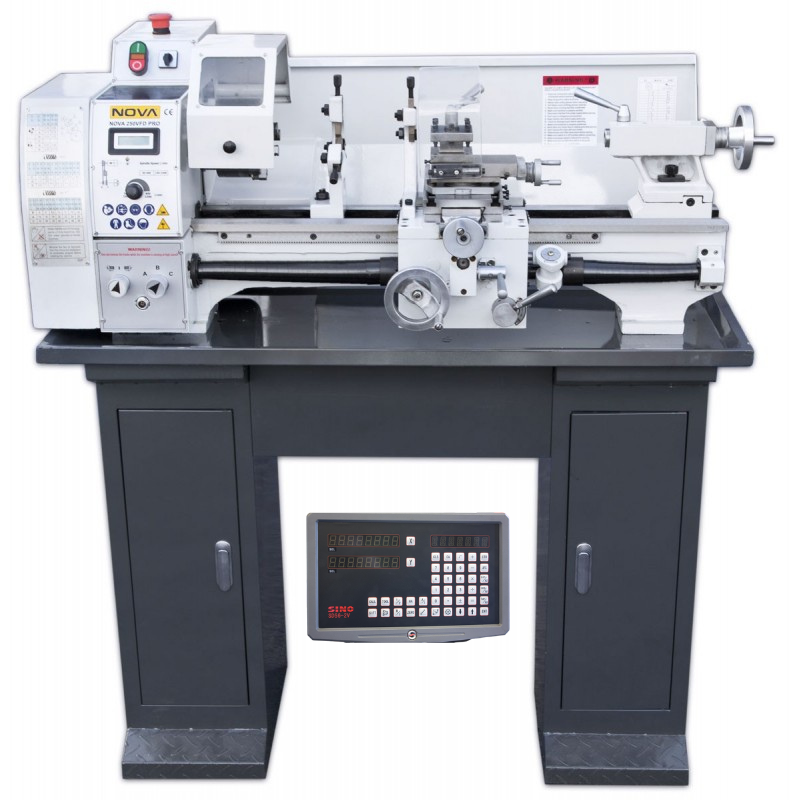

NOVA 250VFD Pro Metal Lathe (with 2-axis digital measuring system with display & Variable frequency drive)
NOVA 250VFD with display & frequency drive.
Description
NOVA 250VFD with display & frequency drive.
Frequency drive ensures high torque on all speeds.
550 mm gap and with automatic longitudinal and lateral feed. Powerful 750 W motor, stepless speed control and digital RPM display. Spindle bore 26 mm. Cast iron, hardened core and induction hardened and grounded conductors allow accuracy of 0.04/0.01 mm. Versatile threading options and high-quality tapered roller bearings. Note. The stand, steady rest and follow rest in the image are not included.
Data sheet
Voltage (V)
230
Rated Power (W)
750
Rotating speed (rpm)
30-2200 (stepless)
Distance between centers (mm)
550
Swing over bed (mm)
250
Swing over cross slide (mm)
150
Spindle bore (mm)
26
Max tool (mm)
12
Tailstock barrel taper
MT2
Tailstock barrel travel (mm)
80
Carriage movement (mm)
450
Cross slide travel Y (mm)
70
Cross slide travel X (mm)
115
Feeding speed Y (mm/r)
0,07-0,20
Feeding speed X (mm/r)
0,03-0,075
Range of threads (metric)
0,2-3,5 (18 pcs)
Range of threads (inches)
8-56 (21 pcs)
Width (mm)
1250
Length (mm)
600
Height (mm)
500
Weight (kg)
180
Warranty
1 year
