NOVA 6240 Metal Lathe

In stock

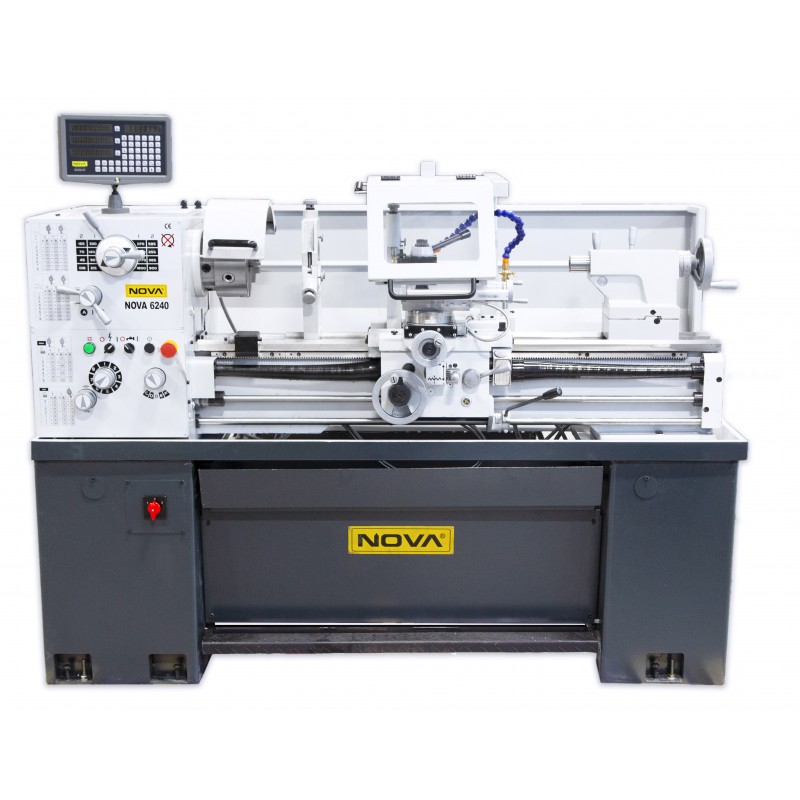

The NOVA 6240 metal lathe is a reliable and precise tool. The adjustable speed of 45–1800 rpm ensures flexibility. A powerful motor and high-quality bed ways make it an excellent choice for machining work.

  • -15%
NOVA 6240 Metal Lathe
search
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
  • NOVA 6240 Metal Lathe
SORME6240


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €11,999.00
Save 15% -€1,799.85
€10,199.15 vat 25.5 %
8 126,81 €
tax excl.
Get price drop alerts
Quantity
In stock

Description

The NOVA 6240 metal lathe is a reliable and precise tool, ideally suited for demanding machining projects. This center lathe has an adjustable spindle speed across a wide 45–1800 rpm range (16 different speeds), enabling flexible work with various metal workpieces. The spindle bore is 52 mm, providing ample capacity for many machining needs, and the distance between centers is 1000 mm, allowing larger workpieces to be handled. The maximum workpiece diameter is 400 mm.

The NOVA 6240’s motor is powerful at 1500/2200 W, ensuring sufficient torque even for complex metal turning operations. The robust, induction-hardened and precision-machined bed ways, with a width of 206 mm, ensure excellent machining accuracy and reliability. Working comfort is enhanced by a halogen work light.

Standard equipment includes a comprehensive range of accessories, such as a cast-iron stand; 3- and 4-jaw chucks (178 mm and 200 mm);  steady rest and follow rest; as well as a chip pan, rear chip guard, a flange mounting part (320 mm), a toolbox, and dead centers. In addition, a 3-axis digital readout (DRO) system ensure accuracy and ease of use.

The NOVA 6240 metal lathe’s technical features and extensive equipment make it a perfect choice for machining work that requires both precision and power. Contact us for more information or to order your product today.

Data sheet

Voltage (V)
380
Rated Power (W)
1500 / 2200
Thread cutting (mm)
0.4-7.0 (37pcs)
Distance between centers (mm)
1000
Swing over bed (mm)
400
Swing over cross slide (mm)
265
Spindle bore (mm)
52
Max tool (mm)
16
Tailstock barrel taper
MT3
Tailstock barrel travel (mm)
115
Cross slide travel Y (mm)
90
Cross slide travel X (mm)
203
Feeding speed Y (mm/r)
0.043-0.653 (48 pcs)
Feeding speed X (mm/r)
0.014-0.206 (48 pcs)
Range of threads (inches)
4-56 (28 pcs)
Rotating speed (rpm)
45-1800 (16 pcs)
Spindle nose
D1-5 Camlock (MK6)
Width of bed (mm)
206
3 jaw chuck
K11-178/D5
4 jaw chuck
K72-200/D5
Faceplate
320mm / D5
Width (mm)
1920
Length (mm)
740
Height (mm)
1220
Weight (kg)
750
Warranty
1 year
