Description

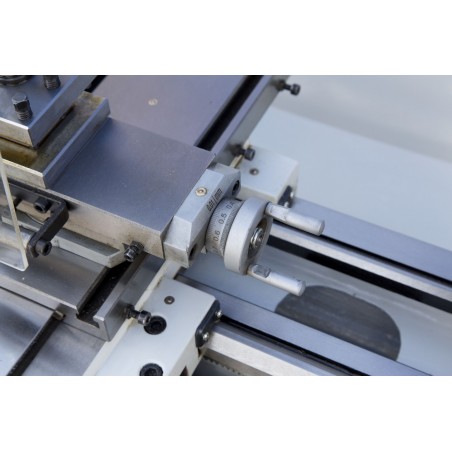

550 mm gap and with automatic longitudinal and lateral feed. Powerful 750 W motor, stepless speed control and digital RPM display. Spindle bore 26 mm. Cast iron, hardened core and induction hardened and grounded conductors allow accuracy of 0.04/0.01 mm. Versatile threading options and high-quality tapered roller bearings.

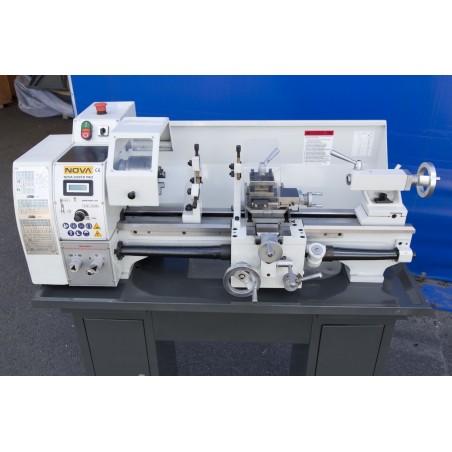

Note. The stand, steady rest and follow rest in the image are not included.
Data sheet
- Voltage (V)
- 230
- Rated Power (W)
- 750
- Rotating speed (rpm)
- 30-2200 (stepless)
- Distance between centers (mm)
- 550
- Swing over bed (mm)
- 250
- Swing over cross slide (mm)
- 150
- Spindle bore (mm)
- 26
- Max tool (mm)
- 12

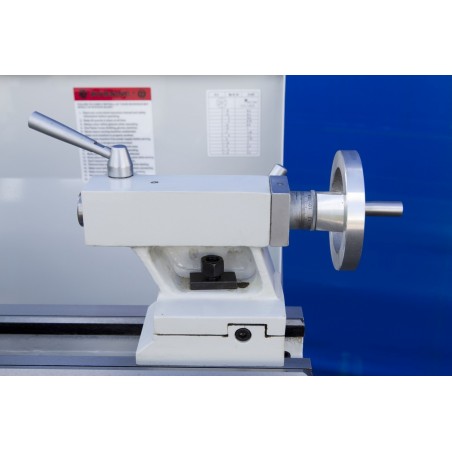

- Tailstock barrel taper
- MT2
- Tailstock barrel travel (mm)
- 80
- Carriage movement (mm)
- 450
- Cross slide travel Y (mm)
- 70
- Cross slide travel X (mm)
- 115
- Feeding speed Y (mm/r)
- 0,07-0,20
- Feeding speed X (mm/r)
- 0,03-0,075
- Range of threads (metric)
- 0,2-3,5 (18 pcs)
- Range of threads (inches)
- 8-56 (21 pcs)
- Width (mm)
- 1250
- Length (mm)
- 600
- Height (mm)
- 500
- Weight (kg)
- 120
- Warranty
- 1 year
