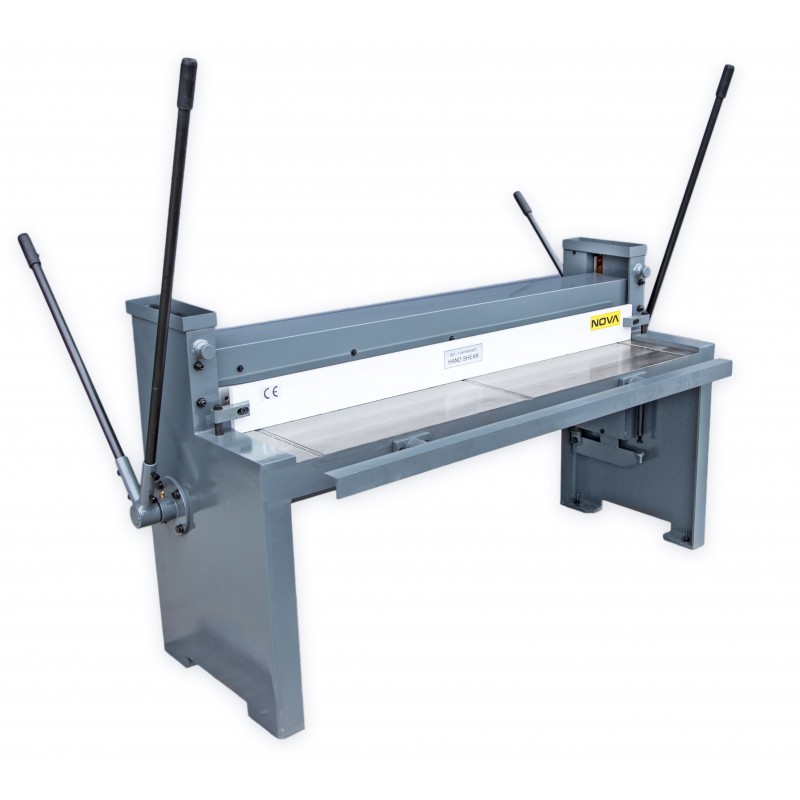

NOVA 2000 Plate Shear

Efficient sheet metal cutter for precise, burr-free cutting. Easy to use and robustly built. Suitable for cutting various metal sheets. Equipped with measuring scales, an automatic clamp, and an adjustable back gauge.

Sheet metal shear, ideally suited for precise cutting of sheet metal, aluminum, copper, and other sheet materials. The rigid construction and high-quality blades ensure a clean, burr-free cut and reliable operation over a long service life.

• Sturdy frame ensures accurate and safe operation

• Smooth cutting action via the side lever

• Pull-out support arm makes handling large sheets easier

• Automatic hold-down clamp keeps the sheet firmly in place during cutting

• The table is equipped with measuring tapes and a square stop on both sides, making accurate cutting easier

• Quick adjustment of the back gauge with the handwheel speeds up work

• The blades are made of durable, high-quality steel and feature a double-sided cutting edge for a long service life

Technical specifications:
Working width: 2000 mm
Max. sheet thickness: 1.25 mm
Back gauge: 0–450 mm
Front gauge: 0–350 mm
Weight: 511 kg
