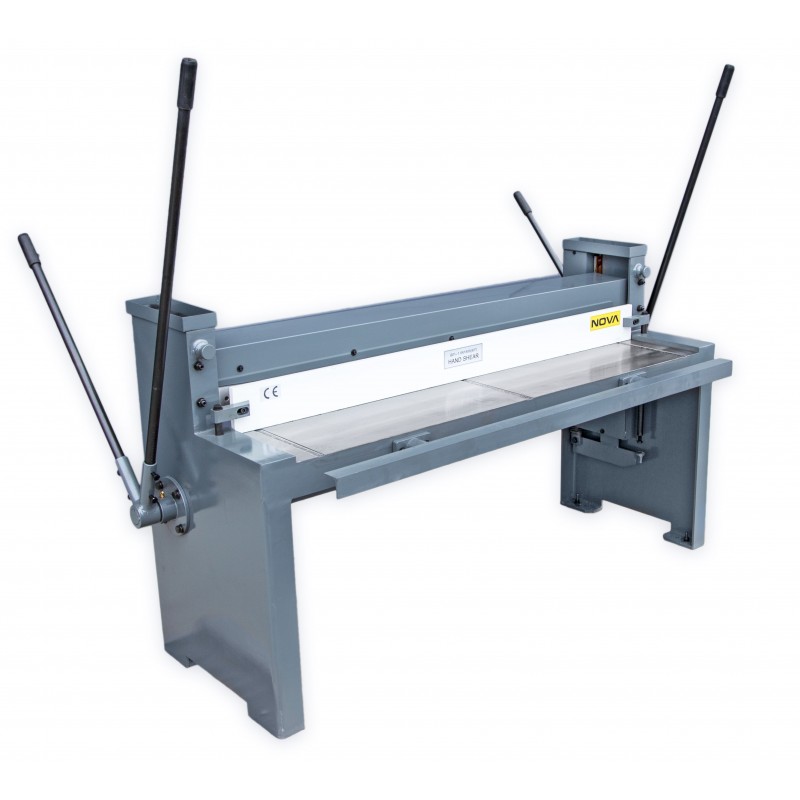

NOVA 1500 Plate Shear

Efficient sheet metal cutter for precise, burr-free cutting. Easy to use and built to last. Suitable for various metal sheets. Equipped with measuring scales, an automatic clamp, and an adjustable back gauge.

A sheet metal shear ideally suited for precise cutting of thin sheet metal, aluminium, copper, and other sheet materials. The rigid construction and high-quality blades ensure a clean, burr-free cut and reliable operation over a long service life.

• Heavy-duty frame ensures accurate and safe operation

• Cutting action is performed smoothly using the side lever

• Pull-out support arm makes handling large sheets easier

• Automatic hold-down clamp keeps the sheet firmly in place during cutting

• The table is equipped with measuring tapes and a square stop on both sides, making accurate cutting easier

• Quick adjustment of the back gauge with a handwheel speeds up work

• The blades are made of durable, high-quality steel and feature a double-sided cutting edge for long service life

Technical specifications:
Working width: 1500 mm
Max. sheet thickness: 1.5 mm
Back gauge: 0–300 mm
Front gauge: 0–350 mm
Weight: 445 kg
