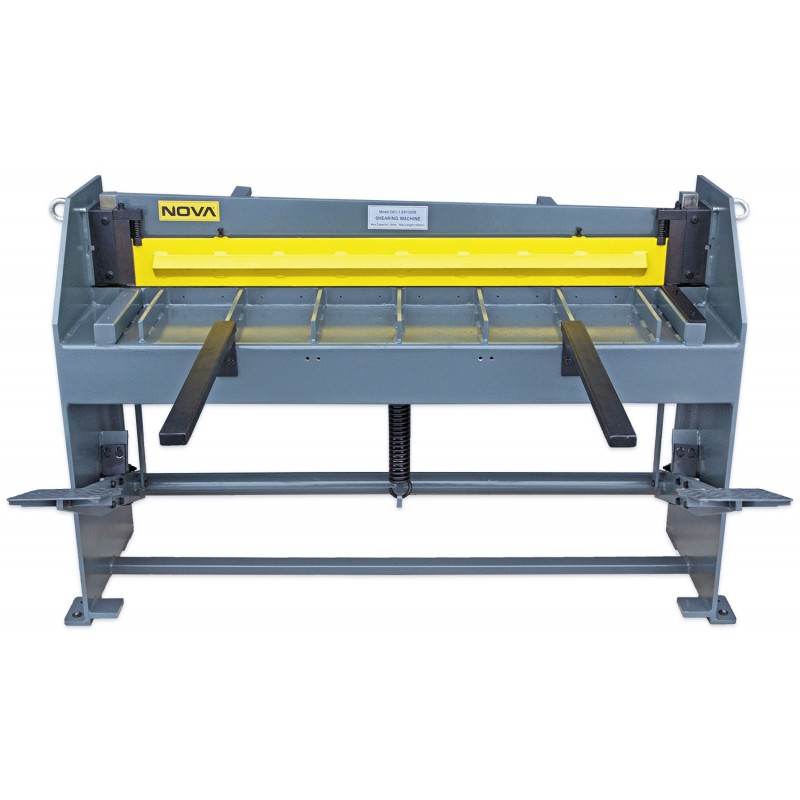

NOVA 2002 Plate Shear

Foot-operated NOVA 2002 sheet metal shear for industrial use. Working width: 1320 mm; maximum sheet thickness: 1.5 mm. Precise adjustments. A sturdy 491 kg frame ensures stable operation.

The foot-operated NOVA 2002 sheet metal shear is suitable for precise cutting of a wide range of materials, such as steel sheet, brass, aluminium, and copper. Cutting is performed with a foot pedal, leaving your hands free to position the sheet. The sturdy cast steel frame and high-quality blades ensure a clean, burr-free cut.

• Working width 1320 mm, maximum sheet thickness 1.5 mm

• Back gauge with fine adjustment, adjustment range 0–840 mm

• Front gauge 0–550 mm

• Square stop with millimetre scale on both sides

• Front support table for sheets makes handling large workpieces easier

• Automatic hold-down clamp keeps the sheet firmly in place during cutting

• Double-edged upper and lower blades made of hardened quality steel for long service life and a clean cut

Dimensions and weight:
Width 1550 mm
Length 1150 mm
Height 1600 mm
Weight 491 kg
