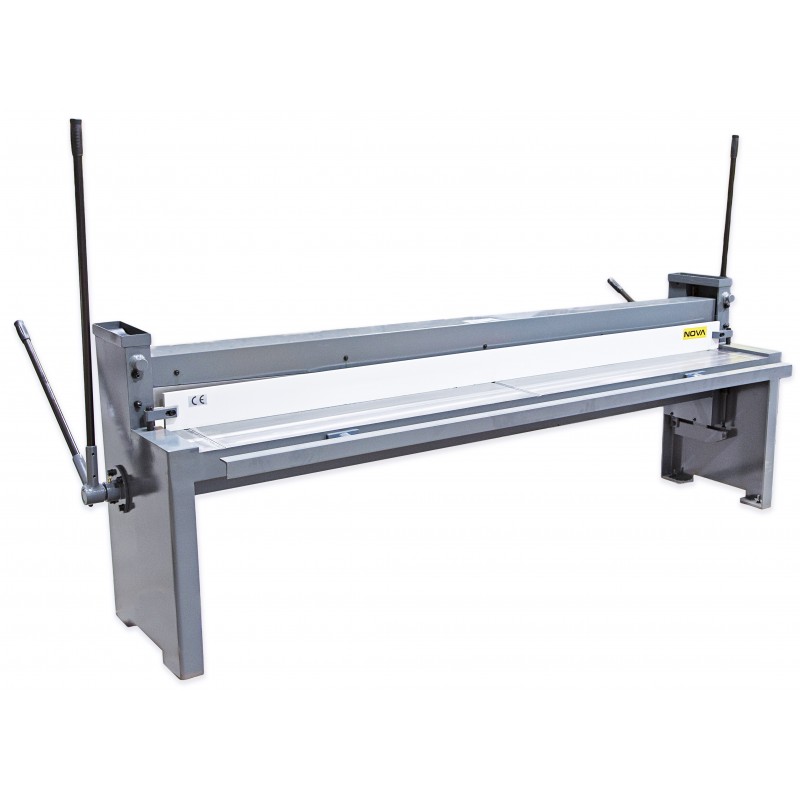

NOVA 2500 Plate Shear

Efficient sheet metal cutter for precise, burr-free cuts. Easy to use and robustly built. Suitable for various types of sheet metal. Equipped with measuring scales, an automatic clamp, and an adjustable back gauge.

Sheet metal shear, ideally suited for precise cutting of thin sheet metal, aluminium, copper and other sheet materials. The rigid construction and high-quality blades ensure a clean, burr-free cut and reliable operation over a long period.

• Sturdy frame ensures accurate and safe operation

• The cutting action is performed smoothly using the side lever

• Pull-out support arm makes handling large sheets easier

• Automatic clamp holds the sheet firmly in place during cutting

• The table is equipped with measuring tapes and a square stop on both sides, making accurate cutting easier

• Quick adjustment of the back gauge with a handwheel speeds up work

• The blades are made of durable, high-quality steel and feature a double-sided cutting edge for a long service life

Technical specifications:
Working width: 2500 mm
Max. sheet thickness: 0.8 mm
Back gauge: 0–450 mm
Front gauge: 0–350 mm
Weight: 557 kg

Note: Additional images show the 1500 mm model
