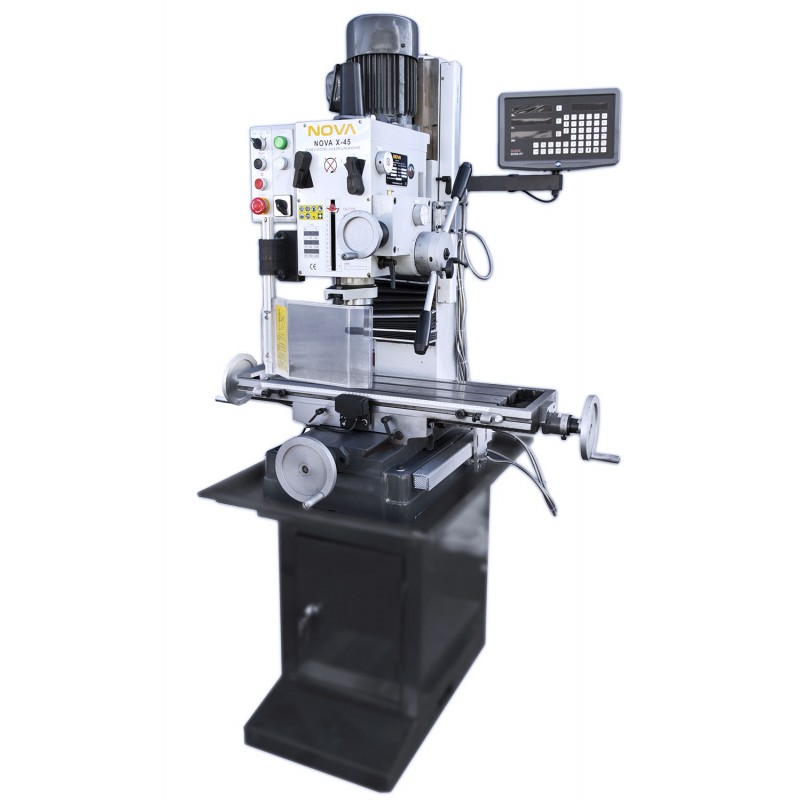

NOVA X-45 Milling Machine with DRO and autofeed for spindle
In stock
NOVA X-45 is equipped with automatic feed, 3 -axis digtal screen, and the body is a so called "dovetail" frame.
JYRX45S
Always affordable prices
Fast delivery
Reliable warranty
€5,399.00
vat 25.5 %
tax excl.
Description
Looking for a powerful and versatile drilling and milling machine? The NOVA X-45 is the perfect choice. This machine features an automatic feed, 3-axis digital screen, and a dovetail frame for added stability. It has a drilling capacity of 40/32 mm for cast iron and steel, respectively, and is driven by a powerful 1.5 kW motor. With its "Micro-feed" feature, the NOVA X-45 is able to handle even the most precise drilling and milling tasks with ease. Plus, it operates quietly, making it ideal for use in a variety of settings.
The NOVA X-45 also has a tilting head that can move left and right by 90 degrees, allowing you to drill or mill at a variety of angles. With a maximum longitudinal movement of 760 mm and lateral movement of 190 mm, this machine is capable of handling a wide range of projects.
In addition to its impressive performance, the NOVA X-45 also comes with a variety of useful accessories, including a drill chuck, fastener for face mill MT4, collet adapter MT4 -> MT3 and MT3 -> MT2, T-slot screws, wedge-key, oil can, and wrench keys. The stand and oil sump are available as optional accessories.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 1100/1500
- Motor (rpm)
- 1400/2800
- Rotating speed (rpm)
- 75-3200 (12 speed)
- Drilling capacity (mm)
- 45 / 32
- Milling capacity (mm)
- 80 / 32
- Head tilt (°)
- 90
- Spindle
- MT4
- Table T -slots (mm)
- 14
- Spindle max distance to table (mm)
- 460
- Distance spindle to column (mm)
- 230
- Spindle travel (mm)
- 120
- Main table size (mm)
- 1000 x 240
- Table movement (mm)
- 760 x 190
- Weight (kg)
- 350
- Warranty
- 1 year
