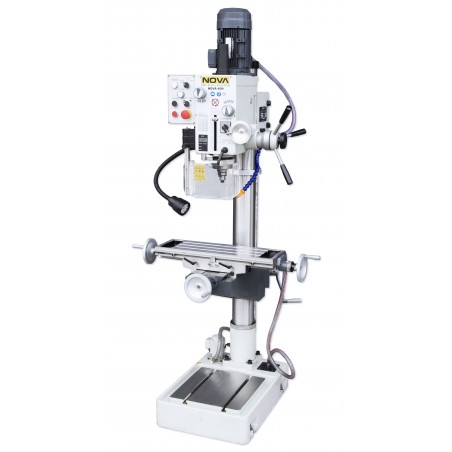

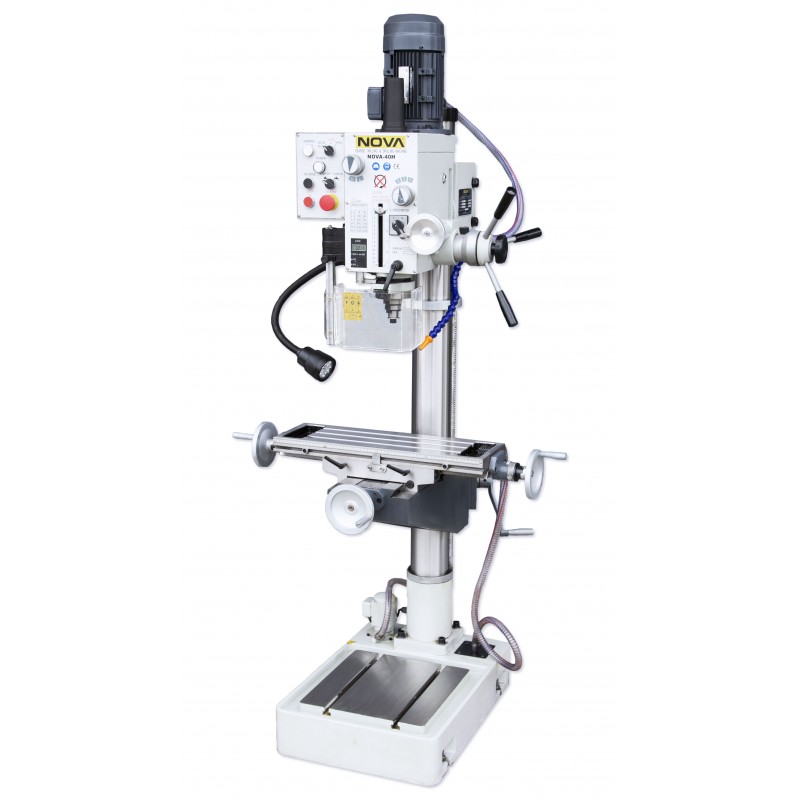

NOVA 40H Drilling/Milling Machine (without feed)
NOVA 40-H with 1.1 kW two-speed motor, gear-driven and equipped with automatic direction change cutter/drill, with or without feed.
Out of stock (ask delivery time)
search
Reference
PORA40H
Always affordable prices
Fast delivery
Reliable warranty
Description
NOVA 40-H with 1.1 kW two-speed motor, gear-driven and equipped with automatic direction change cutter/drill. With a 90 degree incline in both directions, a qualitative design is ensured. The cooling system and work lamp as standard accessories. Suitable for threading.
Includes: 13 mm drill chuck, fastening for face mill MT4, collet adapter MT4 -> MT3 and MT3-> MT2, T-slot fastening screws, wedge key and oil can.
Data sheet
Voltage (V)
380
Rated Power (W)
1100
Rotating speed (rpm)
75-3200 (12 speed)
Drilling capacity (mm)
40
Milling capacity (mm)
32
Head tilt (°)
90
Spindle
MT4
Table T -slots (mm)
12
Spindle max distance to table (mm)
610
Distance spindle to column (mm)
278
Spindle travel (mm)
120
Diameter of column (mm)
115
Main table size (mm)
600 X 190
Stand (mm)
650 x 450
Table movement (mm)
370 X 190
Width (mm)
720
Length (mm)
820
Height (mm)
1830
Weight (kg)
350
Warranty
1 year
