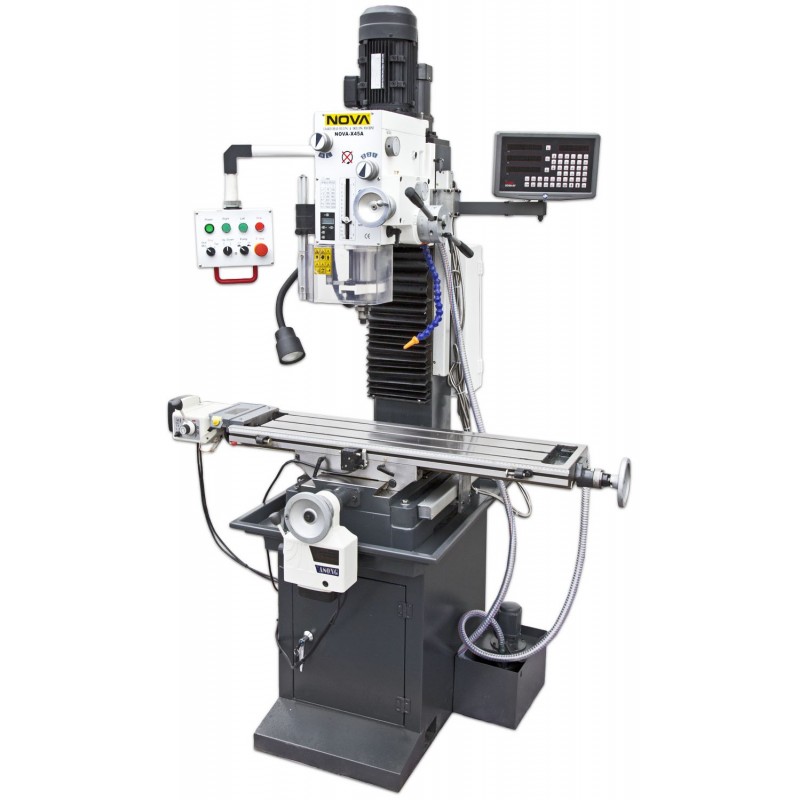

NOVA X-45 SUPER Milling machine

The NOVA X-45 SUPER milling machine offers power and precision for metalworking. The machine features an adjustable spindle with a speed range of 75–3,200 rpm, power feed, and a cast-iron stand for stability. It is the perfect choice for demanding projects.

The NOVA X-45 SUPER milling machine is designed for machinists who value efficiency and precision in metalworking. This machine is ideally suited for demanding projects. Its drilling capacity is 45 mm in cast iron and 32 mm in steel, and its face-milling capacity is 80 mm, with 32 mm for end mills. The milling machine is a reliable tool for both large-scale and small-scale work.

The machine’s two-speed motor is rated at 1100 W / 1500 W, ensuring sufficient power output for a variety of tasks. The milling head tilt angle is adjustable up to 90 degrees in both directions, enabling versatile machining at different angles. The spindle taper is MK4, and spindle speed is adjustable from 75 to 3200 rpm. The automatic tapping function makes thread cutting fast and hassle-free. When the spindle is lowered to the set start height, the tap starts rotating automatically, reverses direction at the specified depth, and stops when the spindle returns to the upper position. The machine table measures 1000 x 240 mm. The table features infinitely variable power feed for the X & Y axes. Travel is 760 mm longitudinally and 210 mm crosswise, enabling the machining of large workpieces. The milling head has its own lifting motor, making height adjustment easy at the push of a button.

The milling machine is equipped with an automatic spindle feed and a 3-axis digital readout (DRO), which together improve machining accuracy. Dovetail column construction increases machine stability. The cast iron stand, in turn, ensures rigidity and vibration-free operation even under heavy machining conditions.

Standard equipment:

• Cast iron stand
• Coolant system
• Drill chuck with arbor
• Face mill holder MK4
• Adapter sleeves MK4 -> MK3
• T-slot clamping bolts
• Drift key
• Oil can
• Set of wrenches

If you are looking for a durable metal milling machine that offers both precision and a long service life, the NOVA X-45 SUPER is an excellent choice. For more information, or if you would like to purchase this tool for your workshop, please contact us.
