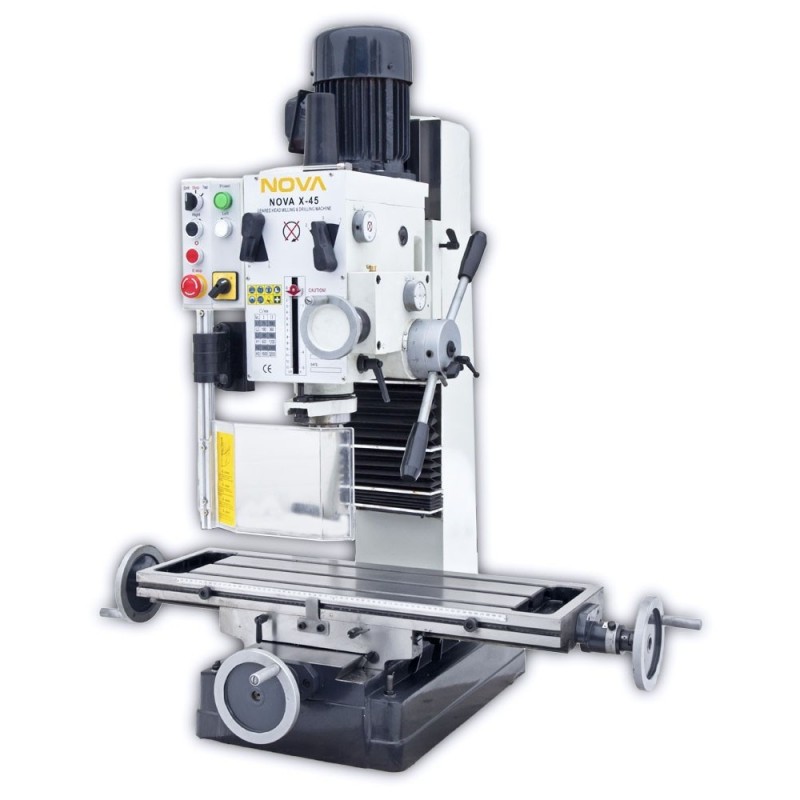

X-45 L Milling Machine (long table)
One of the most popular milling machines on the market. Good price/quality ratio.
Always affordable prices
Otherwise the same as the Nova X-40, but the body is a so called. "Dovetail frame". (Instead of a vertical tube, the frame is quadruple) Here is one of the most popular milling machines on the market. Good price/quality ratio. Made tough for professional use, but the price is very reasonable. Gear driven with "Micro-feed". A machine with a lot of finesse, which can only be found in much more expensive models. Silent machine. 6 speed range: 75 to 3200 rpm. Max drilling capacity: 45 mm in iron and 32 mm in steel. Maximum milling capacity: 80/32 mm. Work table: 1000 x 240 mm. Tilt left and right 90 degrees. Reverse function. Drilling and milling at corners is very convenient and easy with this machine. Maximum longitudinal movement of the table: 760 mm. Side movement: 190 mm. Maximum distance between spindle and table: 460 mm. Motor: 1,5 kW, 380 V, 2800 rpm Weight: 350 kg.
Includes: Drill chuck, fastener for face mill MT4, collet adapter MT4-> MT3 and MT3-> MT2, T-slot screws, wedge key, oil can and wrench keys.
NOTE! 3-phase plug is not included in the package.
The stand and oil base are accessories.
The X-45 L is equipped with a larger table: 1000 x 240 mm.
- Voltage (V)
- Rated Power (W)
- Motor (rpm)
- Rotating speed (rpm)
- 75-3200 (12 speed)
- Drilling capacity (mm)
- 45 / 32
- Milling capacity (mm)
- 80 / 32
- Head tilt (°)
- Table T -slots (mm)
- 14 / 22
- Distance spindle to table (mm)
- Spindle travel (mm)
- Main table size (mm)
- 1000 x 240
- Table movement (mm)
- 190 x 760
- Weight (kg)
- 1 year
