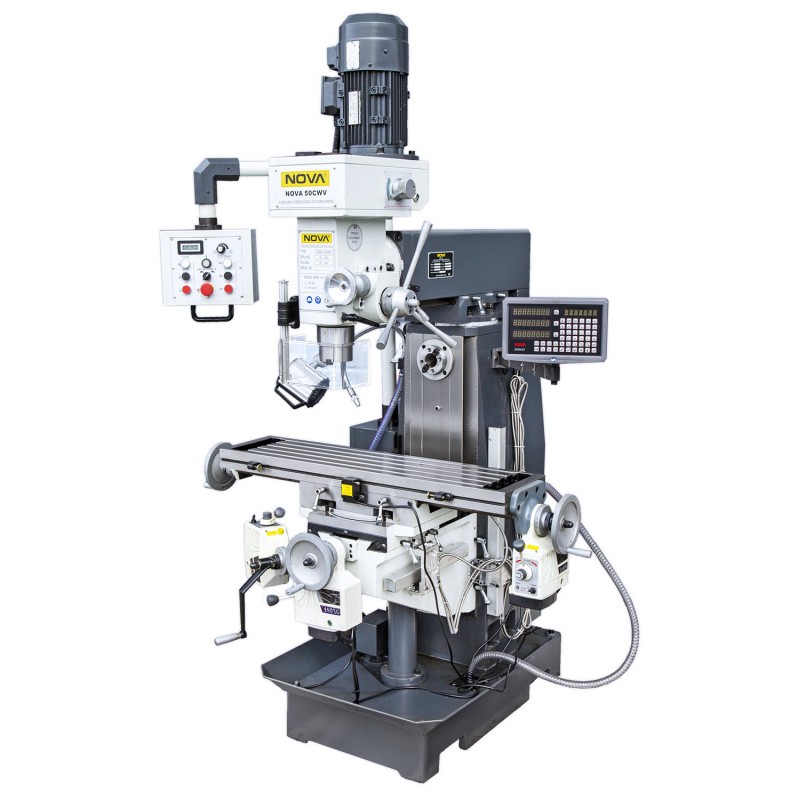

NOVA 50CWV Milling Machine, stepless speed control
The NOVA 50CW models sister 50CWV is equipped with stepless speed control with a frequency converter. The optimal machining speed is now extremely easy and effective.
search
Reference
JYR50CWV
Always affordable prices
Fast delivery
Reliable warranty
Regular price €13,099.00
Save
20%
-€2,619.80
Campaign ends Array
8 349,96 €
Description
Designed for professional use, with powerful motors. Well-equipped with stepless speed control, the 3-axis digital measuring system, automatic feed to the Y-axis, cooling system and ISO40 standard spindle are standard.
Data sheet
Voltage (V)
380
Rated Power (W)
2,2kW + 1,5kW
Rotating speed (rpm)
100-600/350-2000 (V) 60-1350/70-1600 (H)
Drilling capacity (mm)
30
Milling capacity (mm)
100/25
Head tilt (°)
45
Spindle
ISO40
Table T -slots (mm)
12
Spindle max distance to table (mm)
70-370
Distance spindle to column (mm)
250-650
Spindle travel (mm)
120
Main table size (mm)
1000 x 240
Table movement (mm)
580 X 230
Width (mm)
1100
Length (mm)
1280
Height (mm)
2100
Weight (kg)
850
Warranty
1 year
Show all
