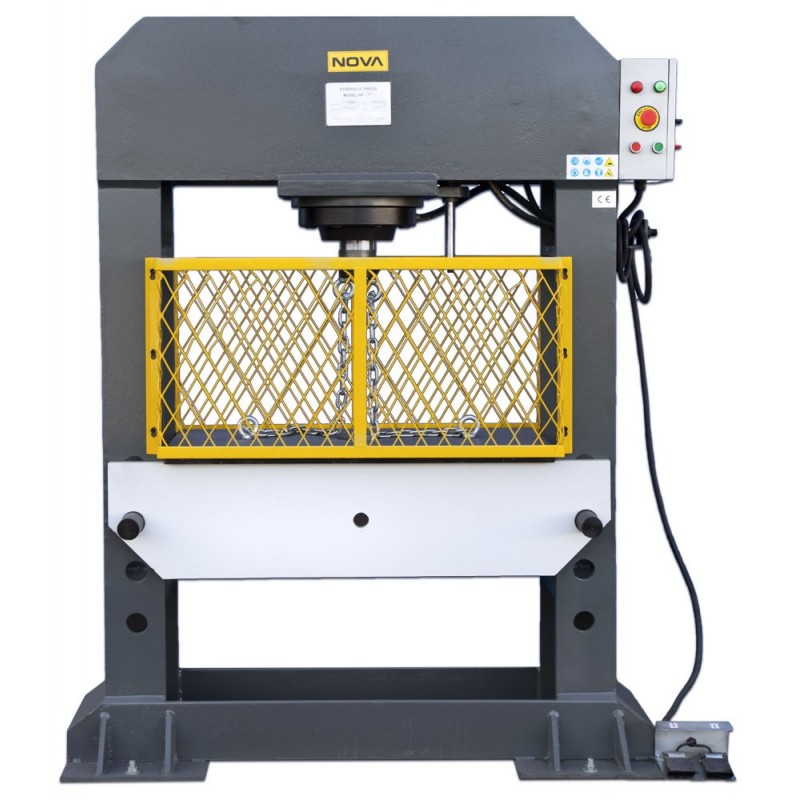

NOVA HP-100 Hydraulic Press 100t

The NOVA HP-100 is a heavy-duty hydraulic press with a 100-ton pressing force, a 3 kW motor, and a hydraulic table lift. Powerful, durable, and equipped with adjustable pressure.

The heavy-duty NOVA HP-100 hydraulic press is designed for demanding professional use. A 100-ton pressing force, a 250 mm ram stroke, and a 3 kW (380 V) motor ensure efficiency and reliability. Table height adjustment is made easy: the table is attached to the ram with chains, allowing the hydraulic cylinder to raise or lower it effortlessly to the correct level. With its robust construction and a weight of 1290 kg, the press withstands heavy loads.

Main features:

• Motor power: 3 kW

• Pressing force: 100 tons

• Ram speed: 4–14 mm/s

• Stroke: 250 mm

• Table size: 460 × 980 mm

• Table travel: 405 mm

• Pressure: 30 MPa

• Weight: 1290 kg
