Description

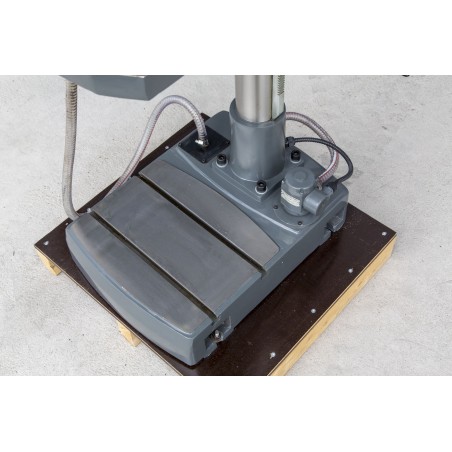

NOVA Z-28 is a drilling machine equipped with a two-speed motor, gear driven, and automatic directional converter. The table can be tilted 90° in both directions. Cooling System. The 850/1100-watt two-speed motor rotates in both directions. The NOVA Z-28 has 28 mm drilling capacity, the MT3 spindle has a movement of 130 mm. The drill is ideal for threading. Weight: 200 kg.
Delivered with:
• 1-13 mm drill spindle and tool wrenches • MT3-B16 drill chuck • 2 pcs T-groove screws • MT3-> MT2 bushing • Wedge • 4 anchors • Oil can
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 850 / 1100
- Rotating speed (rpm)
- 75-3200 / 12 speed
- Drilling capacity (mm)
- 28
- Milling capacity (mm)
- 16
- Spindle
- MT3
- T-slot distance
- 160
- Table T -slots (mm)
- 14
- Distance spindle to table (mm)
- 125-825
- Distance spindle to column (mm)
- 250
- Distance spindle to stand (mm)
- 1220
- Spindle travel (mm)
- 130
- Diameter of column (mm)
- 98
- Main table size (mm)
- 380 x 380
- Stand (mm)
- 360 x 535
- Width (mm)
- 610
- Length (mm)
- 500
- Height (mm)
- 2050
- Weight (kg)
- 200
- Warranty
- 1 year
