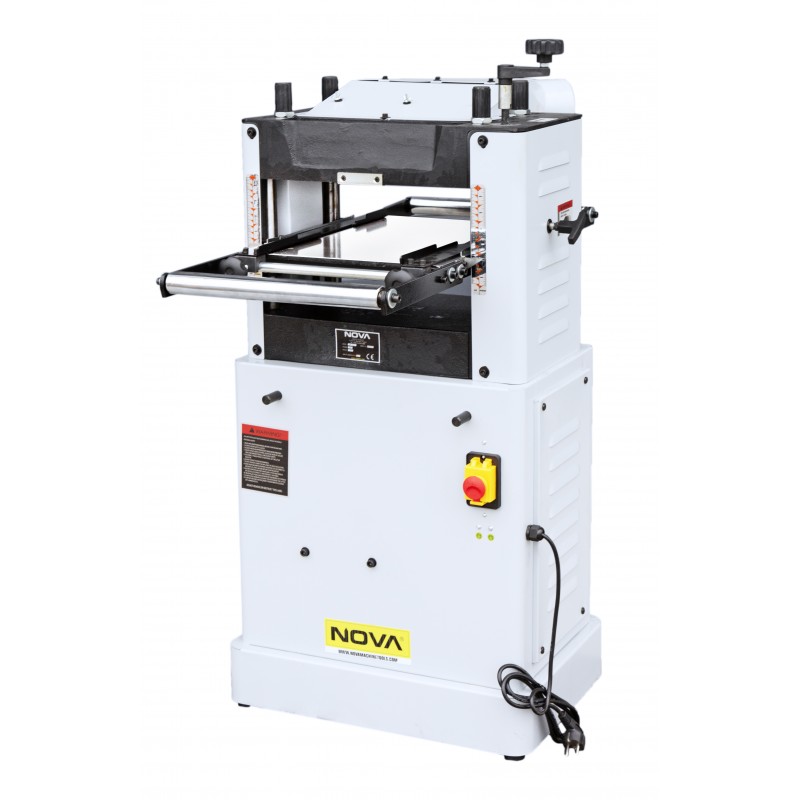

NOVA MB-103.3 Planer (230 V)

In stock

MB-103.3 is a combined planer-molder with which you mold instantly, for example, decorative shapes in skirting boards.

NOVA MB-103.3 Planer (230 V)
HOYMB1033
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
1,389.00 € vat 25.5 %
1 106,77 €
tax excl.
notifications_active Subscribe price drop
Quantity
In stock

Description

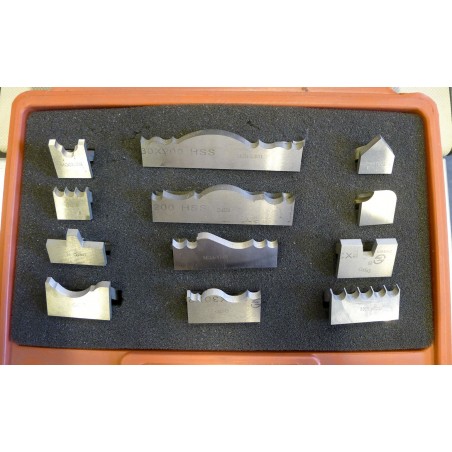

MB-103.3 (230 V) is a combined planer-molder with which you mold instantly, for example, decorative shapes in skirting boards. All you need comes with the machine, including molding set with 12 blades. Thickness planer’s maximum working width is 330 mm and maximum height 150 mm. The motor is 1.5 kW and 5000 RPM. Comes with 3 blades. Cutter 68 mm. Cast-iron table is size 450 x 358 mm. Sturdy stand with rubber coated and adjustable feet included. Vibration-free running. Manual feed shaper, and thickness planer with pull. Now you can do all thickness planers quickly and accurately. When you need special forms, you can instantly change MB-103.3 to a handy milling machine, and get great cuts and shapes for range of different purposes.

Data sheet

Voltage (V)
230
Rated Power (W)
1500
Motor (rpm)
2900
Working height / area (mm)
855
Rotating speed (rpm)
5000
Knives
3
Max cutting width (mm)
330
Cutterhead diameter (mm)
68
Feeding speed (m/min)
4,96 / 6,33
Max height (mm)
150
Max cutting (mm)
1,6mm - 330mm 3mm - 120mm
Dust collector port (mm)
100
Main table size (mm)
450 x 358
Weight (kg)
120
Warranty
1 year
