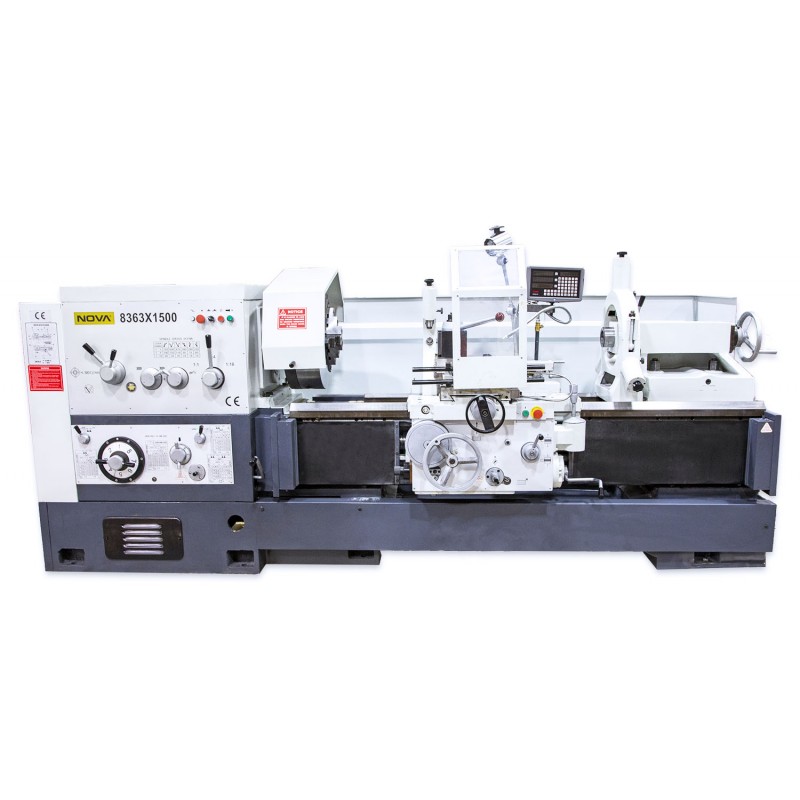

NOVA 8363 X 1500 tailstock metal lathe

Pre-order product - Delivery time 4-5 months

NOVA 8363 X 1500 for demanding professional use.

-20%

Reference SORME836315

Always affordable prices
Fast delivery
Reliable warranty

Brand

NOVA

Norm. 48,499.00 €

You save 20% 9,699.80 €

38,799.20 € vat 25.5 %

30 915,70 €
tax excl.

Subscribe price drop

Quantity

Pre-order product - Delivery time 4-5 months

Ask about the product

Description

NOVA 8363 X 1500 for demanding professional use. The lathe equipped with a large SINO digital display, automatic transverse and longitudinal feed, large 1500 mm space between the centers and an 105 mm hole diam. throughput through the spindle. The lathe has induction-hardened and precision machined slide bars. The maximum diameter of a work-piece to be machined is 630 mm, and by removing a slide element, the diameter of the piece to be machined can be up to 830 mm! Powerful 15 kW three-phase motor. 18/9 rotationalspeed.

Equipped with: digital display, 3-jaw chuck (500 mm) and 4-jaw chuck (400 mm), quick change system (5 pcs. cassettes), support dock, 2 pcs dead centers, work lamp, cooling system, wrenches and machine feets 8 pcs.

Data sheet

Voltage (V): 380
Rated Power (W): 15000
Rotating speed (rpm): clockwise 14-750 rpm (18) counterclockwise 21-857 rpm (9)
Distance between centers (mm): 1500
Swing over bed (mm): 630
Swing over gap (mm): 830
Swing over cross slide (mm): 345
Spindle bore (mm): 105 (MT6)
Max tool (mm): 32
Tailstock barrel taper: MT6
Tailstock barrel travel (mm): 200
Cross slide travel Y (mm): 230
Cross slide travel X (mm): 400
Feeding speed Y (mm/r): 72 pcs basic feed 32pcs 0.10-1.42 mm/r fine feed 8pcs 0.048-0.089 mm/r increased feed 32pcs 1.52-22.8 mm/r
Feeding speed X (mm/r): 72 kpl basic feed 32kpl 0.03-0.45 mm/r fine feed 8kpl 0.015-0.028 mm/r increased feed 32kpl 0.48-7.2 mm/r
Range of threads (metric): 1-240 (54)
Range of threads (inches): 1-28 TPI (36)
Range of threads (Module): 0.5~60mm (27)
Keermete vahemik (Pitch thread): 1-30 (27)
Fuse (A): 64
Width (mm): 1270
Length (mm): 3452
Height (mm): 1345
Weight (kg): 4700
Warranty: 1 year
