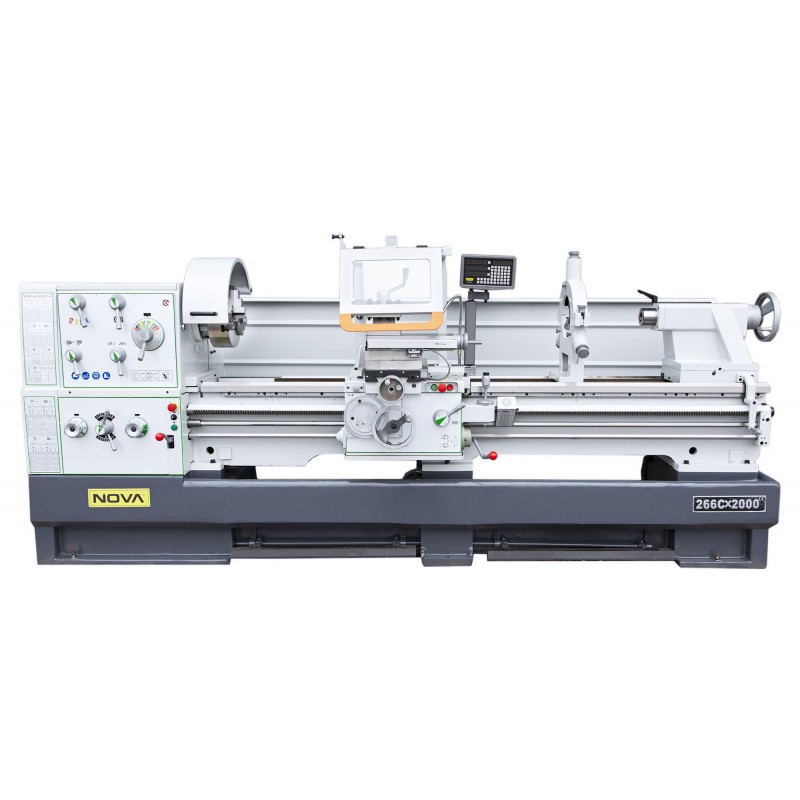

NOVA C266 x 2000 Tailstock Metal Lathe
NOVA C266 x 2000 is a lathe with a powerful 7.5 kW / 380V motor and top quality gearbox.
Description
NOVA C266 x 2000 is a lathe with a powerful 7.5 kW / 380V motor and top quality gearbox. The spindle hole diameter is 105 mm, the space between centers is 2000 mm and the precision is 0.01 mm. Maximum diameter of the workpiece to be machined is 660 mm and by removing a removable slide element over the bed, the diameter of the piece to be machined can be up to 900 mm! Three-axis display. Four different thread types enable as many as 196 thread options. Longitudinal and vertical quickfeed. The 3065 kg heavy lathe guarantees comfort with induction hardened slide bars and a strong frame.
INCLUDED: Quick change toolpost,Sino Digital display (3 axles), oil base and back plate, stand, 3-jaw chuck (315 mm), 4-jaw chuck (400 mm), flat mounting plate, bearings, live center (fixed), halogen working light, cooling system , toolbox (with tools).
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 7500
- Rotating speed (rpm)
- 25 - 1600 rpm / 16 speeds
- Distance between centers (mm)
- 2000
- Swing over bed (mm)
- 660
- Available lenght in gap
- 250 mm
- Swing over gap (mm)
- 900
- Swing over cross slide (mm)
- 440
- Spindle bore (mm)
- 105
- Max tool (mm)
- 25
- Tailstock barrel taper
- MT5
- Tailstock barrel travel (mm)
- 235
- Cross slide travel Y (mm)
- 230
- Cross slide travel X (mm)
- 368
- Feeding speed Y (mm/r)
- 0,044 - 1,48 mm/r (25 pcs)
- Feeding speed X (mm/r)
- 0,022 - 0,74 mm/r (25)
- Range of threads (metric)
- 0,45 - 120 mm (54 pcs)
- Range of threads (inches)
- 7/16 - 80 T.P.I (54)
- Range of threads (D.P.)
- 7/8 - 160 (42)
- Range of threads (Module)
- 0.25 - 60 MP (46)
- Width (mm)
- 1230
- Length (mm)
- 3210
- Height (mm)
- 1600
- Weight (kg)
- 3065
- Warranty
- 1 year
