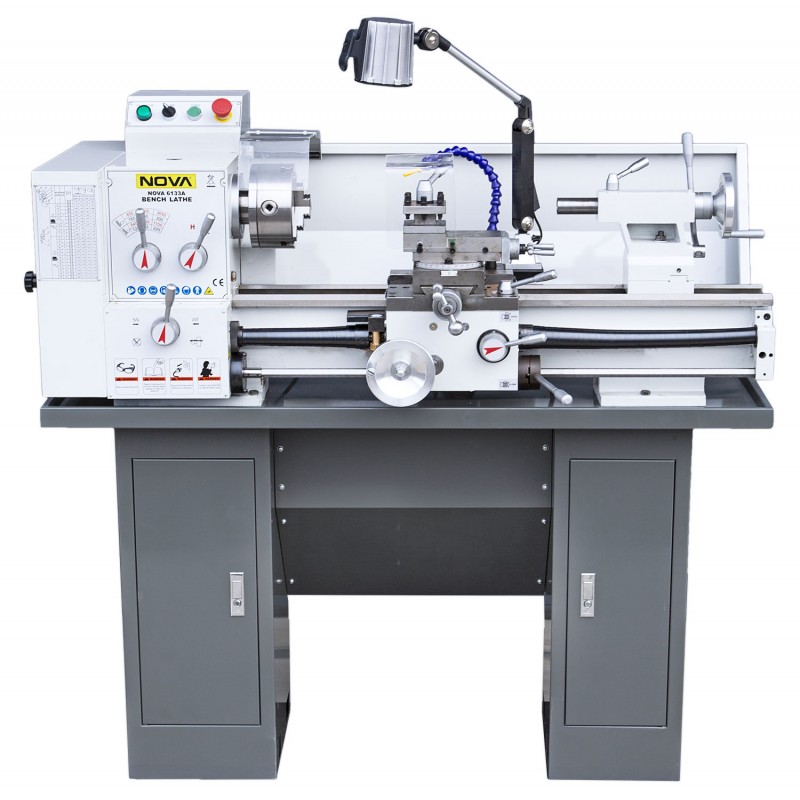

NOVA 6133A Metal Lathe
Nova 6133 centre lathe with very versatile equipment.
search
Reference
SORME6133
Always affordable prices
Fast delivery
Reliable warranty
Regular price €4,699.00
Save
20%
-€939.80
Campaign ends Array
2 995,38 €
Description
Nova 6133 centre lathe with very versatile equipment. Comes with a stylish and robust stand that are equipped with 2 cabinets, also oil pan. Halogen working light and cooling system are standard in our package. Automatic longitudinal and vertical feeds. Slide bars are induction-hardened. Vibration-free. For high accuracy machining: 0.01 mm. Distance between centers 750 mm. 38 mm hole diameter in the spindle.
Includes: 3 jaw chuck (160 mm), fixed live center, stand, cooling pump, gear set for threading, oil can, wrenches, tool box. The price also includes the back plate.
Data sheet
Voltage (V)
380
Rated Power (W)
1100
Rotating speed (rpm)
65-1650 (12 speed)
Distance between centers (mm)
750
Swing over bed (mm)
320
Spindle bore (mm)
38
Max tool (mm)
16
Tailstock barrel taper
MT3
Tailstock barrel travel (mm)
70
Cross slide travel Y (mm)
100
Cross slide travel X (mm)
170
Feeding speed Y (mm/r)
0,1 - 1,4
Feeding speed X (mm/r)
0,022 - 0,3
Range of threads (metric)
0,5 - 4 (17 pcs)
Range of threads (inches)
9-48 (26 pcs)
Width (mm)
1550
Length (mm)
660
Height (mm)
520
Weight (kg)
270
Warranty
1 year
