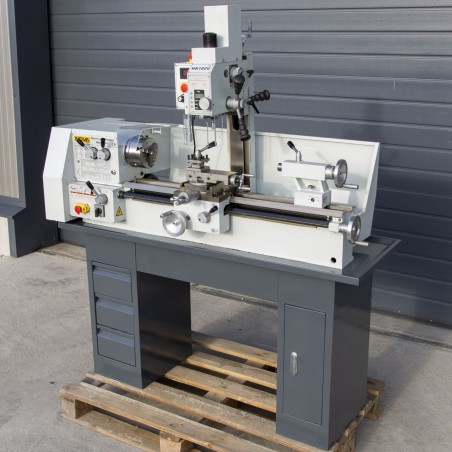

NOVA 25L/3 Metal Lathe 230V

In stock

NOVA 25L/3 is a reliable combination machine. Excellent two in one kit that is suitable for small workshops and enthusiasts.

NOVA 25L/3 Metal Lathe 230V
search
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
  • NOVA 25L/3 Metal Lathe 230V
SORME25L3


Always affordable prices



Fast delivery



Reliable warranty


NOVA
€3,799.00 vat 25.5 %
3 027,09 €
tax excl.
Quantity
In stock

Description

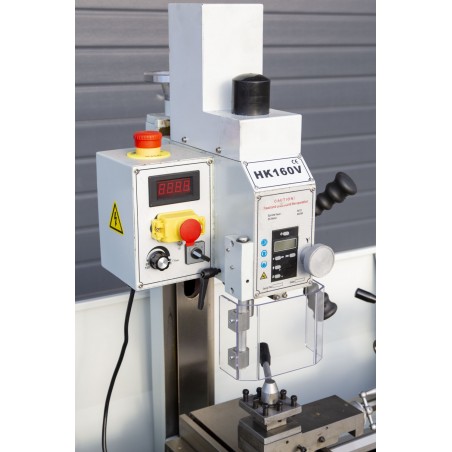

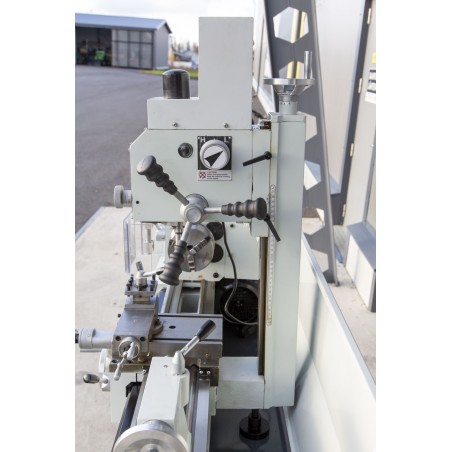

The lathe is the same as 25L, but equipped with a milling/drilling machine. NOVA 25L/3 is sold in over 100 countries! A mini lathe that is suitable for small workshops, repair shops, and of course metal work enthusiasts.

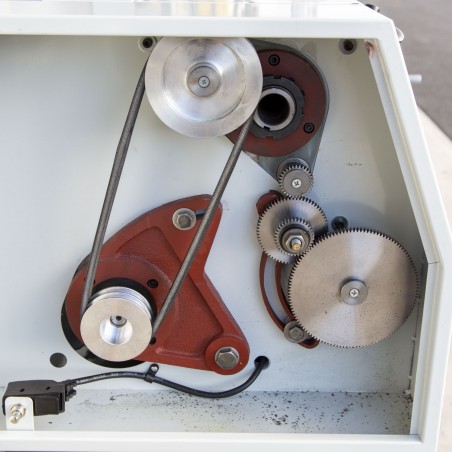

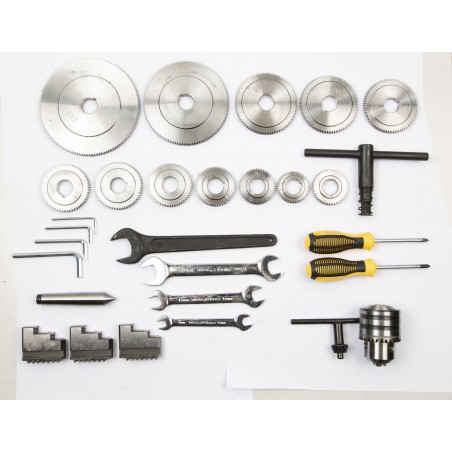

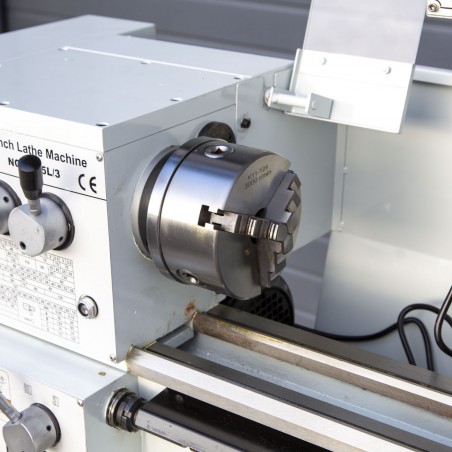

Includes: 3 jaw chuck (125 mm), 2 pcs. live centers, gear wheel set for threading.

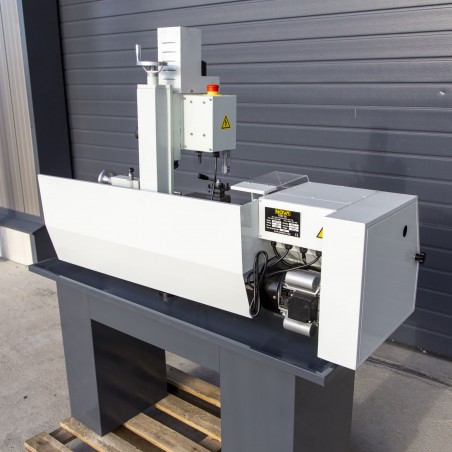

The stand is optional.

Data sheet

Voltage (V)
230
Rated Power (W)
750
Drilling capacity (mm)
16
Milling capacity (mm)
20 / 50
Head tilt (°)
90
Spindle
MT2
Drill chuck
3 - 16 mm
Distance between centers (mm)
700
Swing over bed (mm)
250
Spindle bore (mm)
27 (MT4)
Max tool (mm)
12

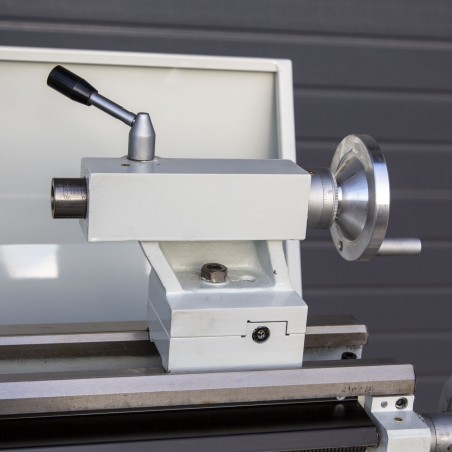

Tailstock barrel taper
MT2
Tailstock barrel travel (mm)
60

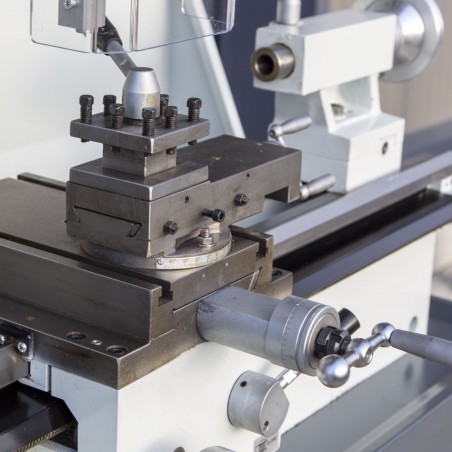

Cross slide travel X (mm)
115
Feeding speed Y (mm/r)
0,05 - 1,25

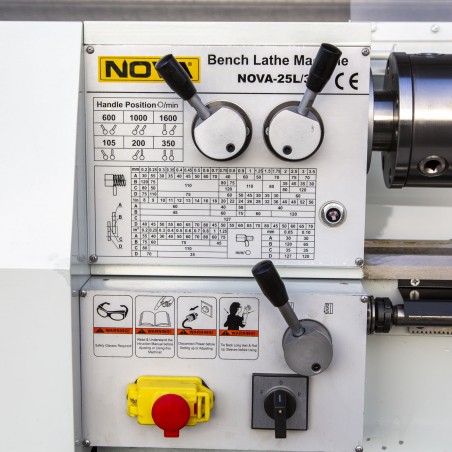

Range of threads (metric)
0,2-3,5 (20pcs)
Range of threads (inches)
8-56 (20pcs)
Width (mm)
1450
Length (mm)
600
Height (mm)
920
Weight (kg)
245
Warranty
1 year
